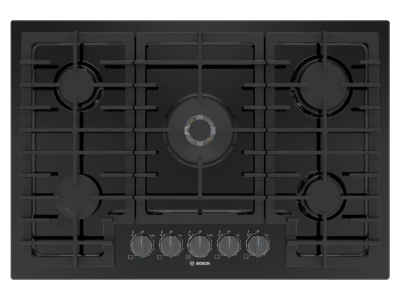

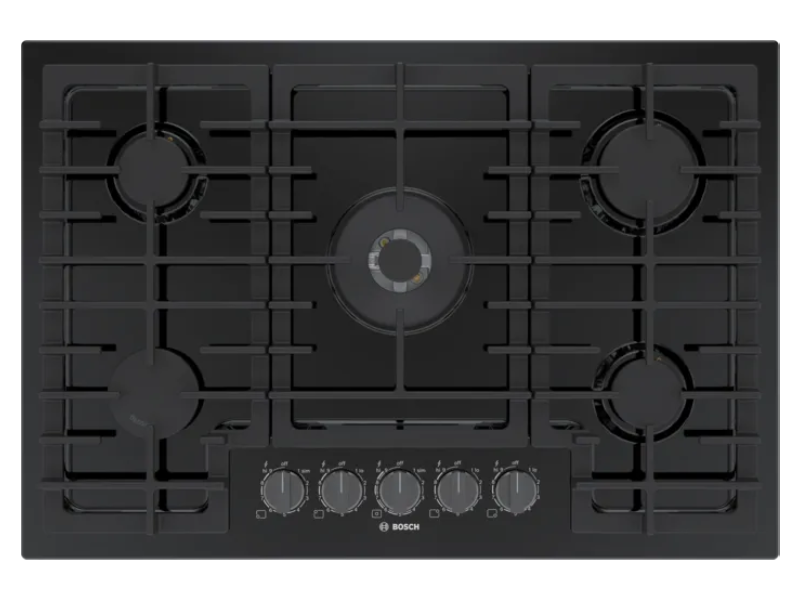

30" Bosch 800 Series 5 Burners Gas Cooktop - NGM8049UC
Highlights

Eliminate the guesswork of cooking with FlameSelect®
Introducing FlameSelect® on Bosch cooktops, an entirely new and better way to cook with gas. 9 preset power levels let you easily adjust flame level for more precise, controlled heating. Whether you’re rapidly bringing water to an intense boil or delicately melting chocolate, the numbered flame levels deliver the exact temperature every time. There’s no more hot or cold spots, just precision heating for perfect results.

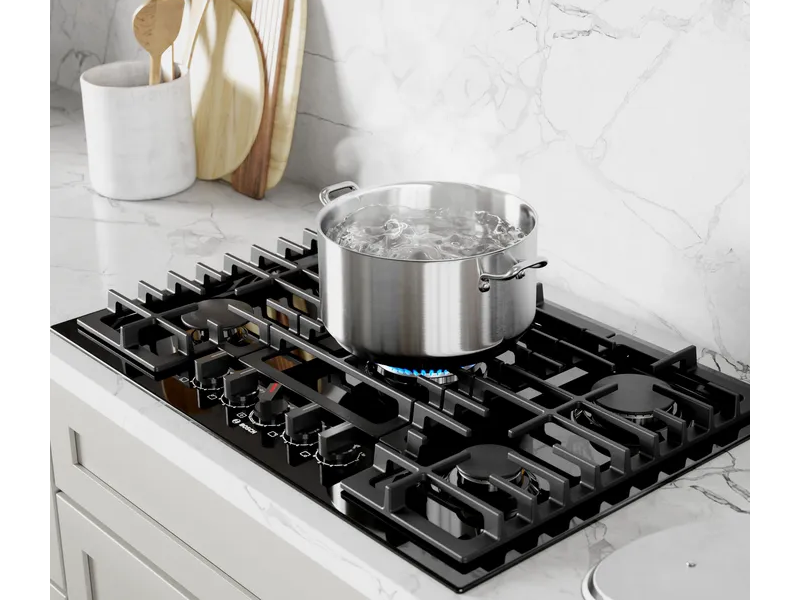

Slide your pans from burner to burner
The full-width continuous cast iron grate design makes sliding heavy pots easier around the cooking surface.

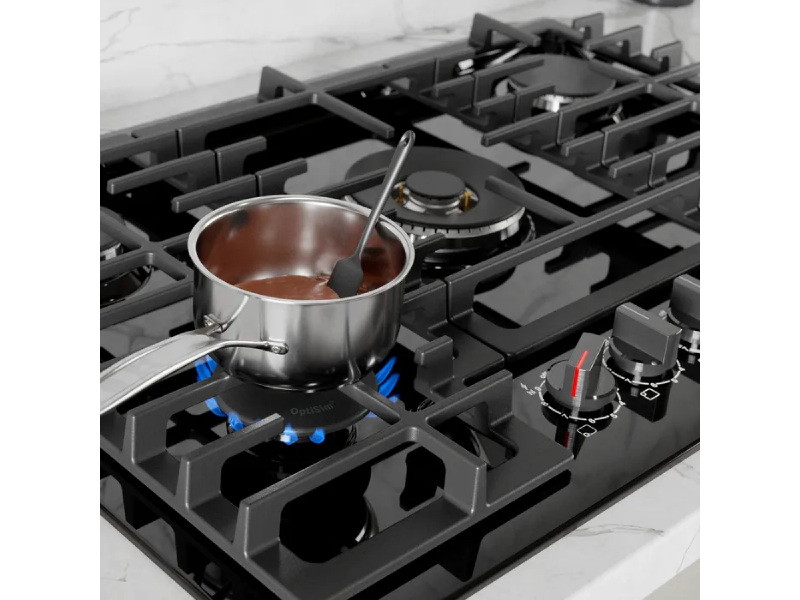

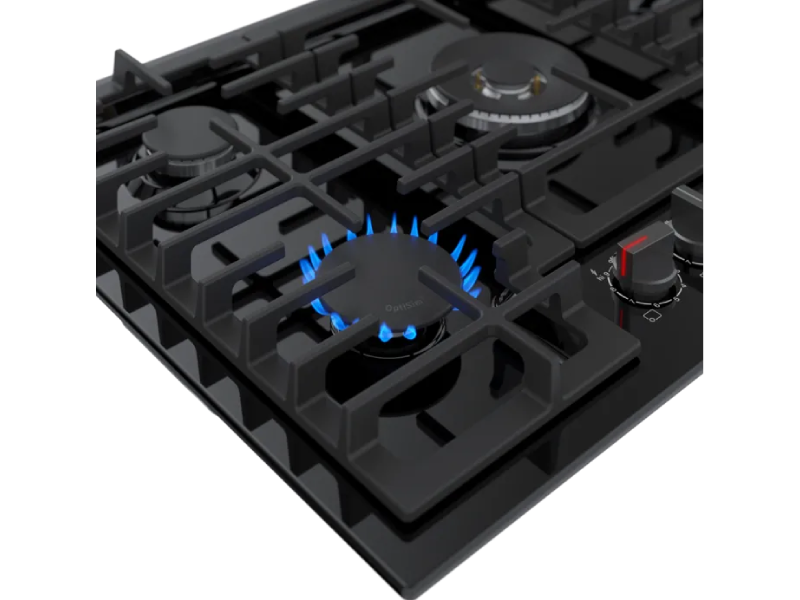

Simmer delicate sauces with the OptiSim® Burner
The OptiSim burner design is wider and thicker which diffuses heat evenly for better flame control when simmering delicate sauces.

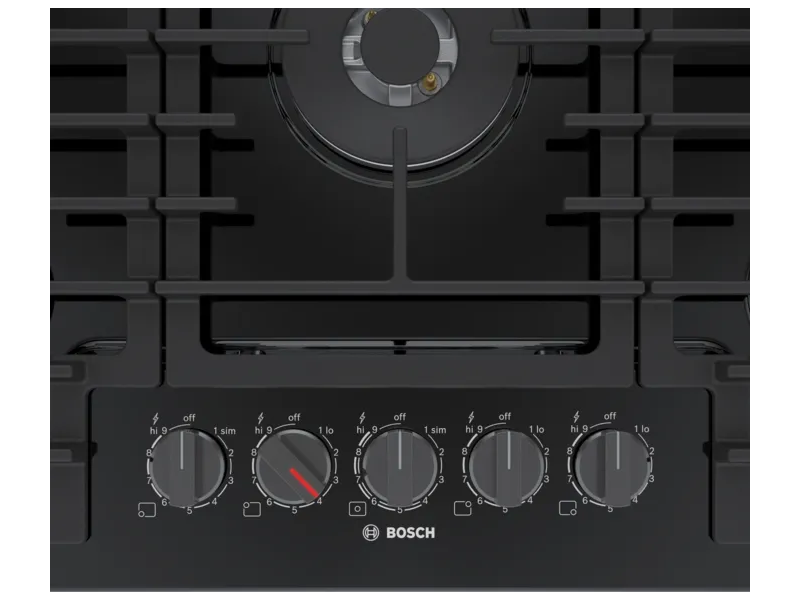

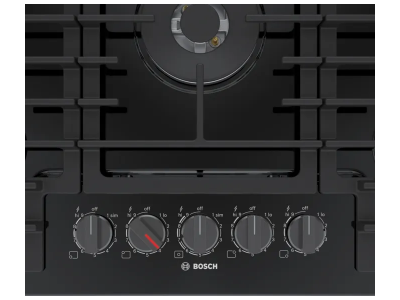

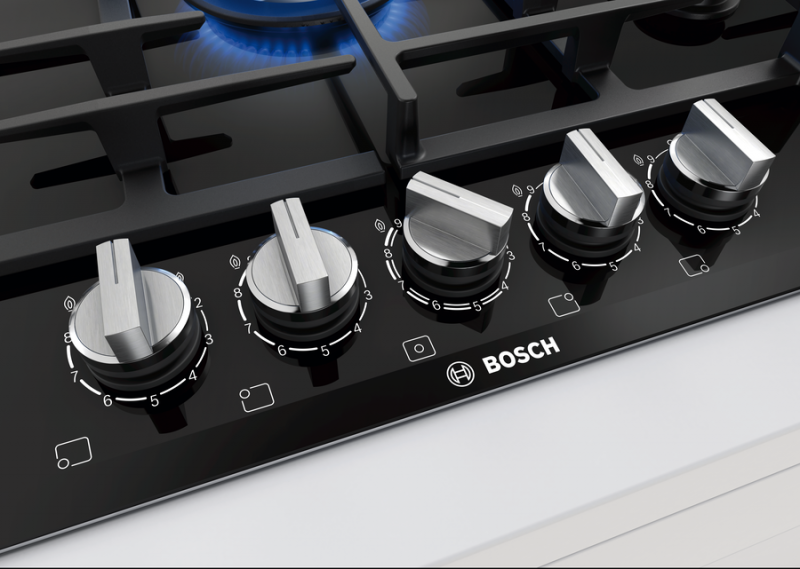

Sleek Knobs with LED Indicators
Control knobs with an embedded red LED light line indicate if the burner is on or if there is residual heat.

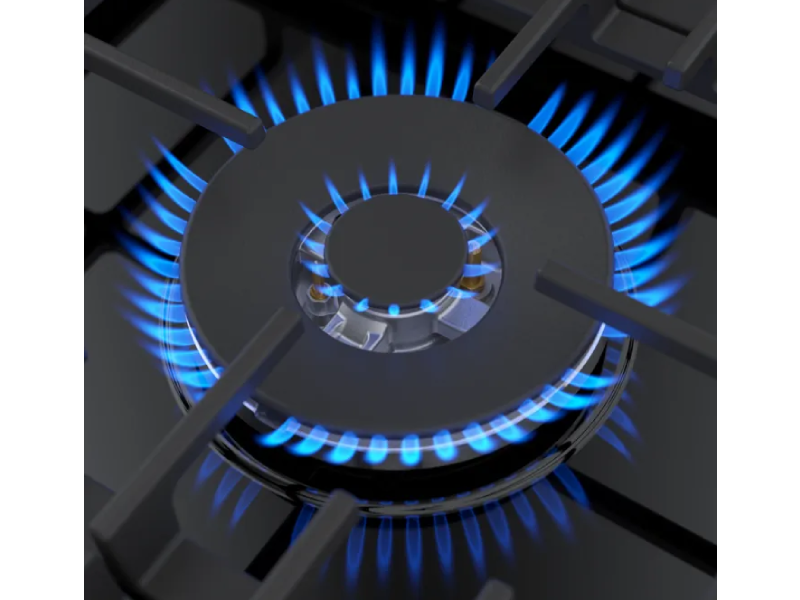

Boil water quickly with a Dual-Flame Power Burner
The dual flame ring power burner has two rings for low and high flame settings so you can go from simmer to sear with ease. Heat level 1-3 uses the inner ring, and 4-9 uses both rings for maximum heat.

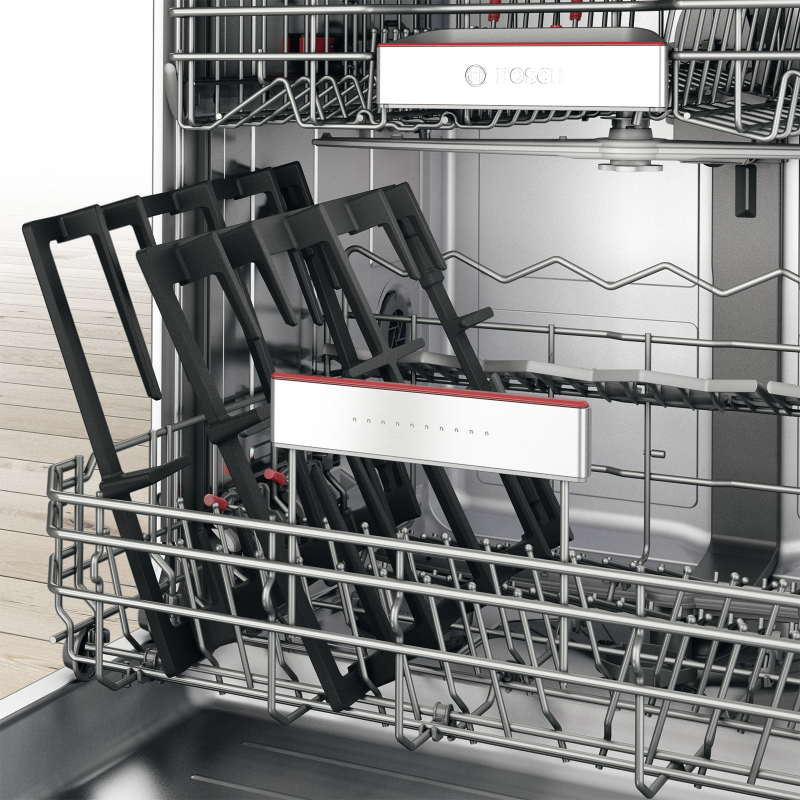

Dishwasher-safe grates
A special enameling process allows the grates to be washed directly in the dishwasher instead of by hand for easier clean up.
Residual Heat Indicator
Residual heat indication shown on the cooktop with a 'H' for hot to touch or 'h' for warm taking the guesswork out of safety.

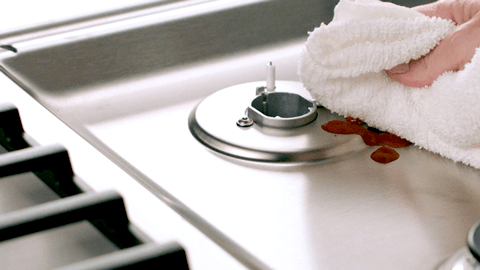

Easy to clean, low-profile design
The low-profile cooking surface provides a timeless, streamlined look while keeping spills contained and makes clean-up easier than ever.
Special Features
- FlameSelect®:delivers a new and better way to cook with gas with 9 pre-defined power levels for precise heat.
- Continuous Cast Iron Grates:makes it easy to slide pots & pans from burner to burner.
- OptiSim® Burner:the wide & thick burner design diffuses heat evenly and reduces hot spots -- perfect for simmering delicate sauces or melting chocolate.
- LED Burner Indicator:displays a red light line to indicate if a burner is on and pulses as a safety residual heat indicator
- Dual-Flame Power Burner:2 rings of heat let you go from simmer to a high powered boil with ease.
General Properties | |
---|---|
Number of Burner | 5 |
Knob color | Black stainless steel appearance |
Control location | Front-center |
Sealed burners | Yes |
Valves | Five 9-level gas step valves |
Ignition system | Electronic; thermocouple flame monitor control |
Surface | Black porcelain enamel |
Grate material | Cast iron |
Grate features | Continuous grates, dishwasher safe |
Element Performance | |
Total BTU load (NG / LP) | 40,700 / 39,400 |
Power of front left burner (NG / LP) | 3,400 / 3,400 |
Power of back left burner (NG / LP) | 5,000 / 5,000 |
Power of center burner (NG / LP) | 17,000 / 15,700 |
Power of back right burner (NG / LP) | 10,300 / 10,300 |
Power of front right burner (NG / LP) | 5,000 / 5,000 |
TECHNICAL DETAILS | |
Circuit breaker | 15 A |
Volts | 120 V |
Frequency | 60 Hz |
Plug type | 3-prong |
Power cord length | 40" |
Energy source | Natural Gas (factory set) |
Convertible to LP (kit required) | Yes |
Dimensions & Weight | |
Overall appliance dimensions (HxWxD) | 4 1/2" x 31" x 21 1/4" |
Required cutout size (HxWxD) | 2" x 28 15/16" x 19 1/8" |
Minimum distance from counter front | 1 7/8" |
Minimum distance from rear wall | 3" |
Net weight | 51 lbs. |
Accessories—Included | |
Included | LP Conversion Kit, OptiSim® Cap |
