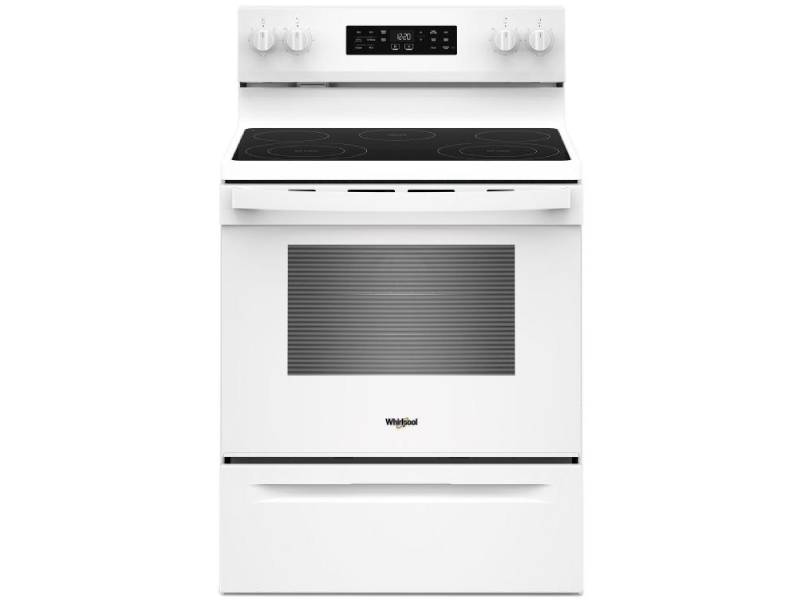

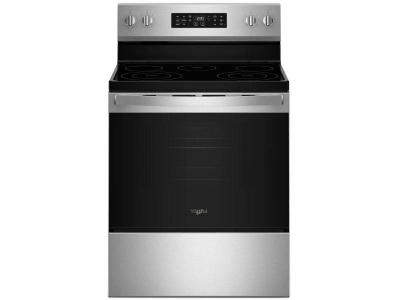

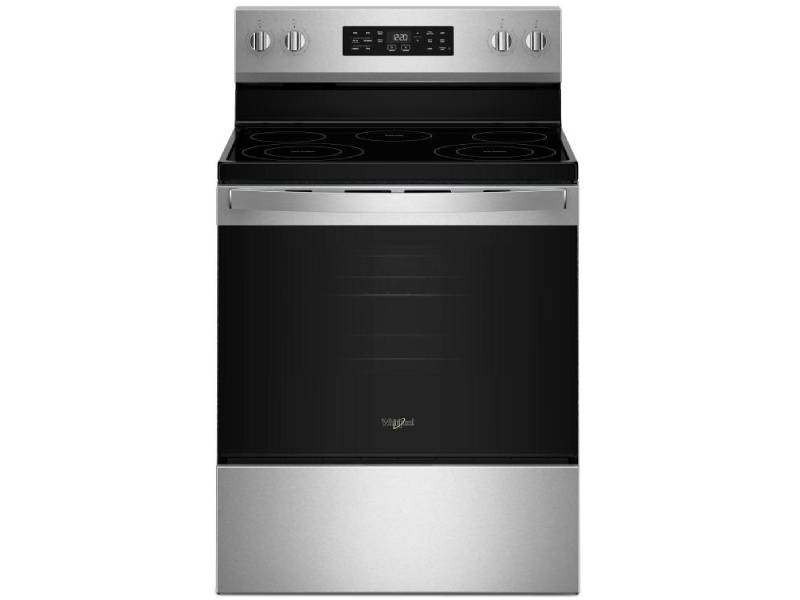

30" Whirlpool Electric Range with Air Cooking Technology - YWFES4530SW

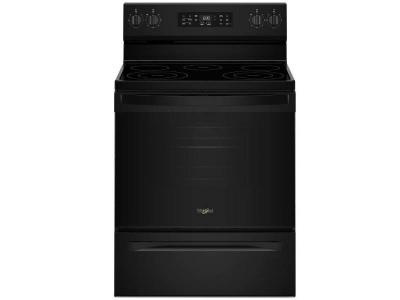

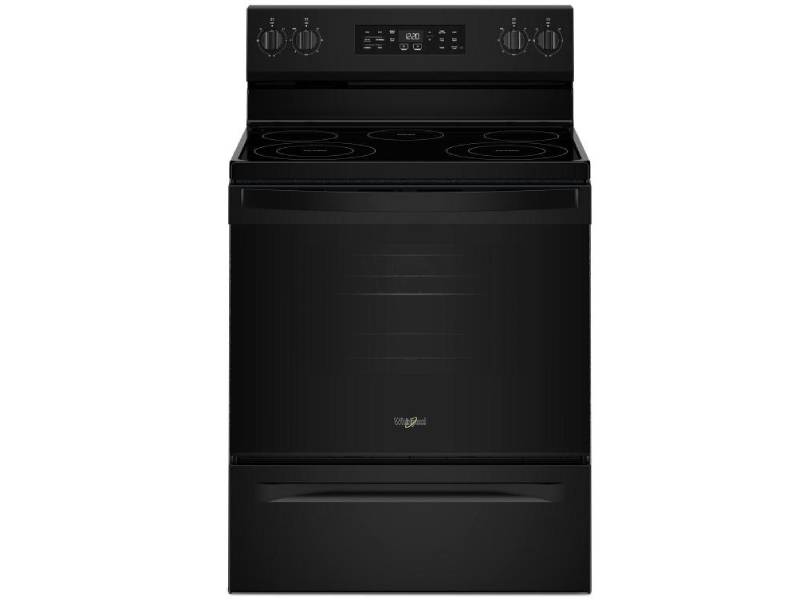

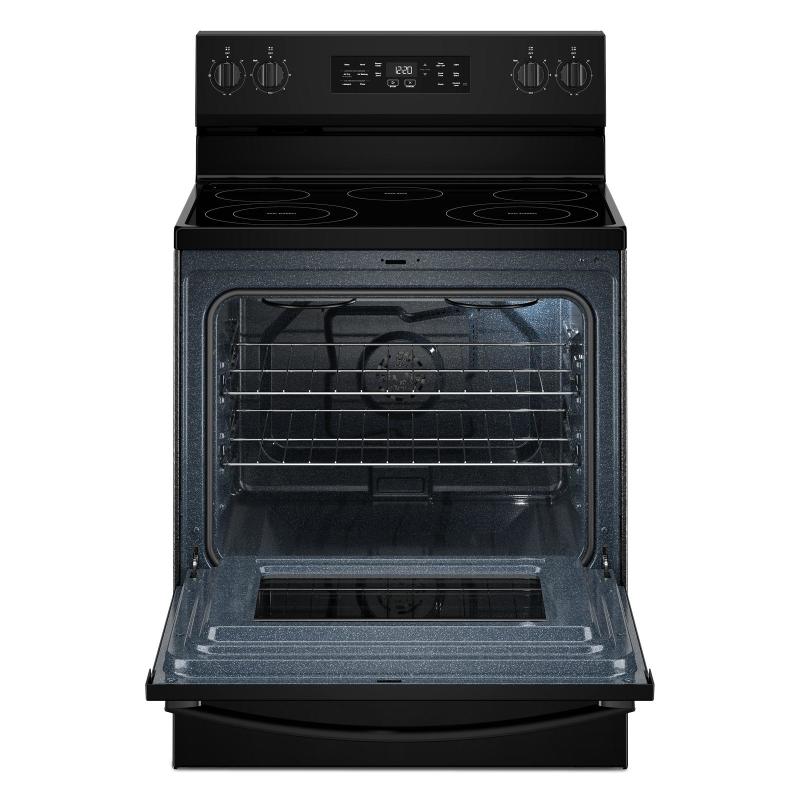

30" Whirlpool Electric Range with Air Cooking Technology - YWFES4530SB
30" Whirlpool Electric Range with Air Cooking Technology - YWFES4530SW

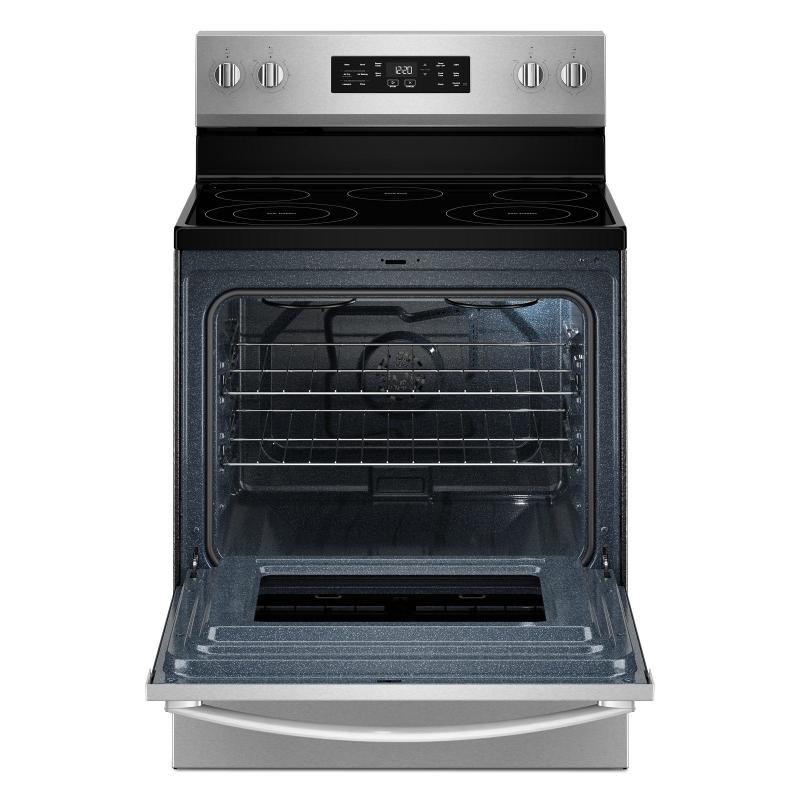

30" Whirlpool Electric Range with Air Cooking Technology - YWFES4530SZ
Top Features
Air Cooking Technology
Experience the difference with Air Cooking Technology, featuring more airflow with No Preheat Air Fry and Air Baking.
(Compared to Thermal bake.)
Cooking Modes
Make more feel-good meals with a variety of cooking modes. Choose from modes that use Air Cooking Technology, like No Preheat Air Fry and Air Baking, or use traditional thermal cooking modes like Bake or Broil.

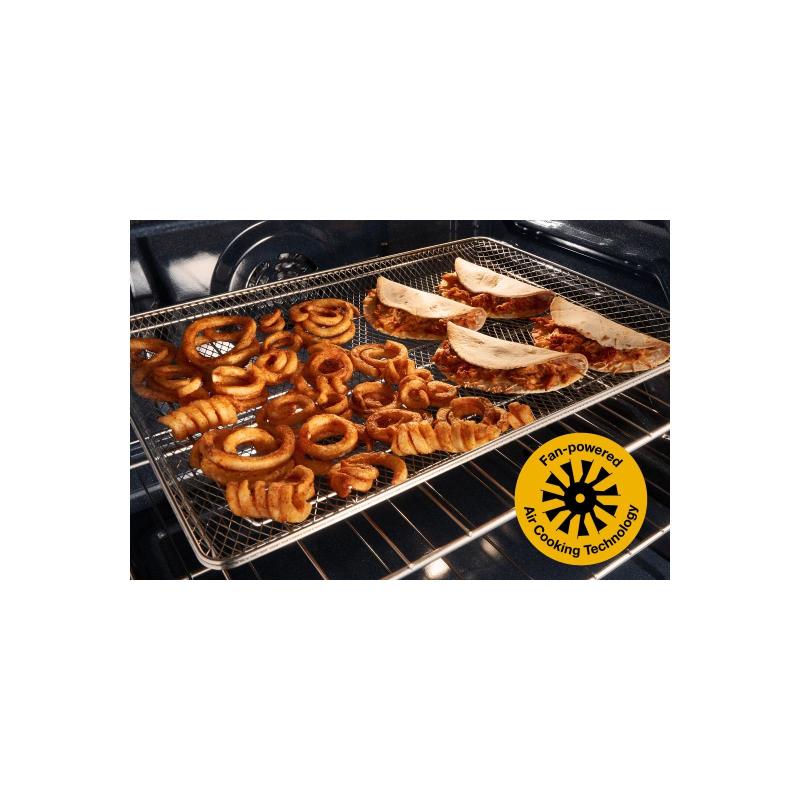

No Preheat Air Fry
Save time* with No Preheat Air Fry. Get the right heat at the right time with our most advanced Air Fry mode. Get fast, crispy results on chicken wings and mozzarella sticks without the guilt.
*Compared to YWFE550S0LZ
Additional Features

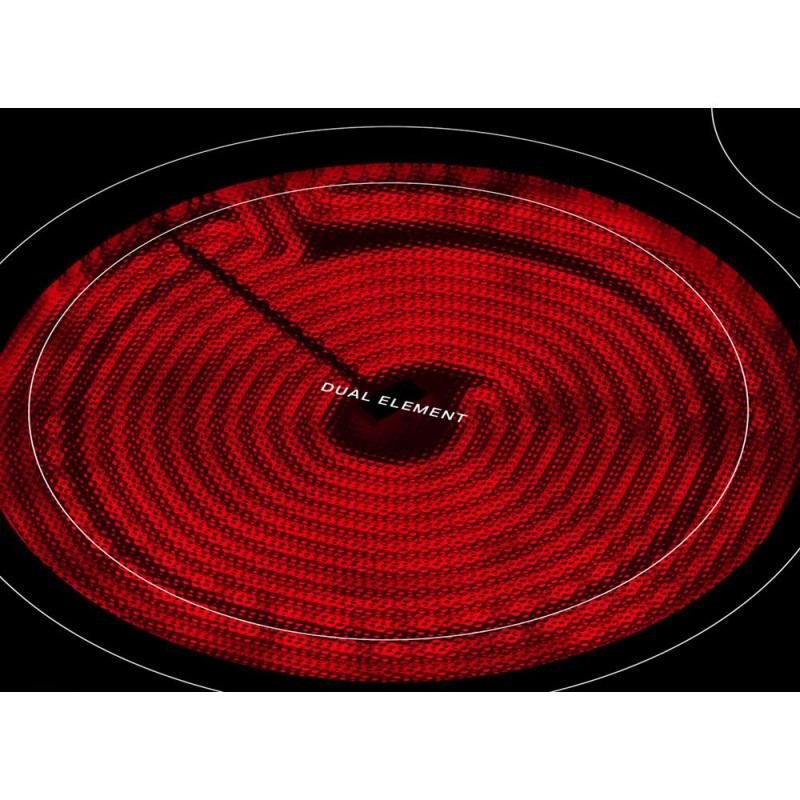

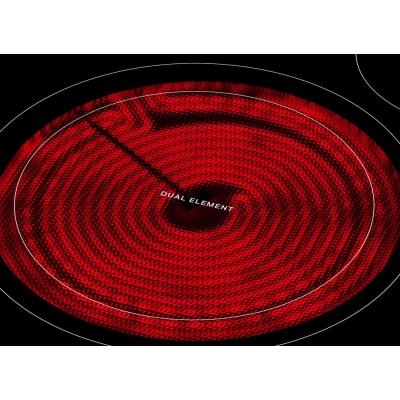

2 FlexHeat™ Dual Radiant Elements
Customize your element size for large or small cookware and boil 40% faster* with two FlexHeat™ Dual Radiant Elements, designed with a 6" inner ring and 9" expandable outer ring. *When comparing the 9" element to the standard 6" element on the same unit.
Steam Clean
Use the Steam Clean cycle regularly to help prevent large soils from building up. To quickly and easily loosen light messes inside the oven without harsh chemicals or cleaners—just add water, run the cycle, and wipe away.

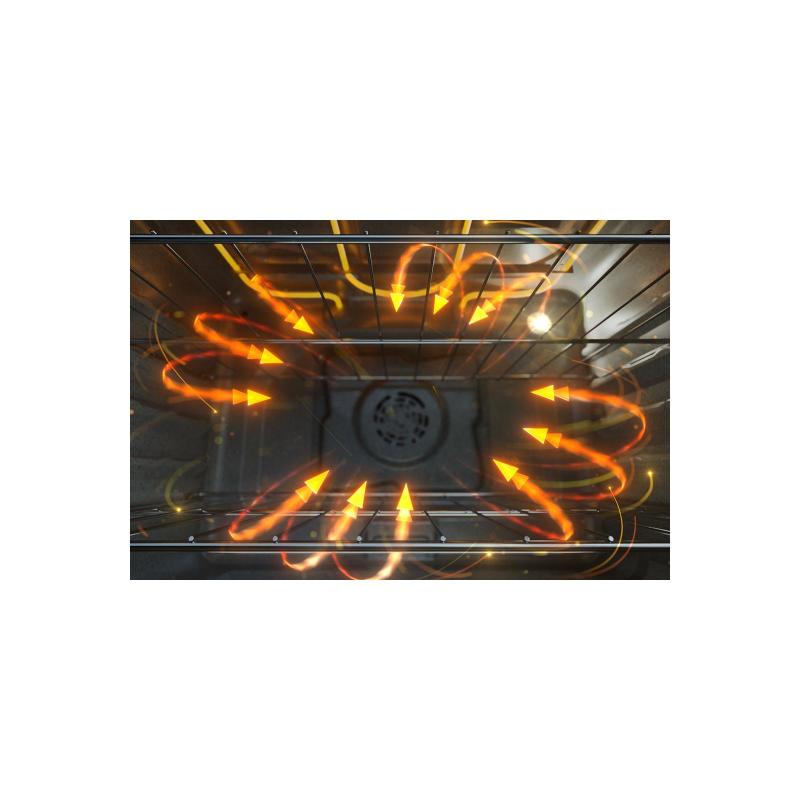

Air Baking
Go from gooey to golden and get even results when baking on multiple racks with Air Baking. Our high-speed fan optimizes air flow and drives consistent heat throughout the oven. Get golden results on breads, pastries and more.
No Preheat Mode
Take preheating off your plate and cook up frozen faves with No Preheat Mode. Simply press a few buttons and let your oven calculate the proper cooking time.
Bake
Spend less time monitoring with a built-in temperature sensor to help Bake evenly. This sensor manages oven temperature for delicious results every time.
Broil
Redefine mealtime with Broil to make crispy-melty nachos, juicy-seared meat, toasty grilled cheese and more.
Warm Zone
Use the designated Warm Zone to keep your food warm on the cooktop as you prep the rest of your meal.

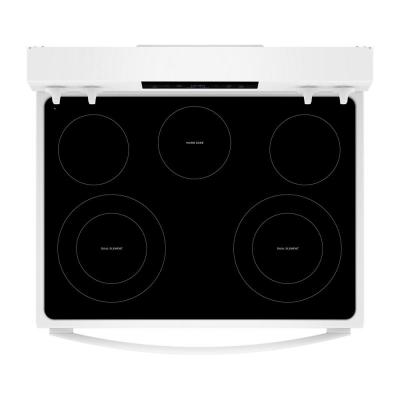

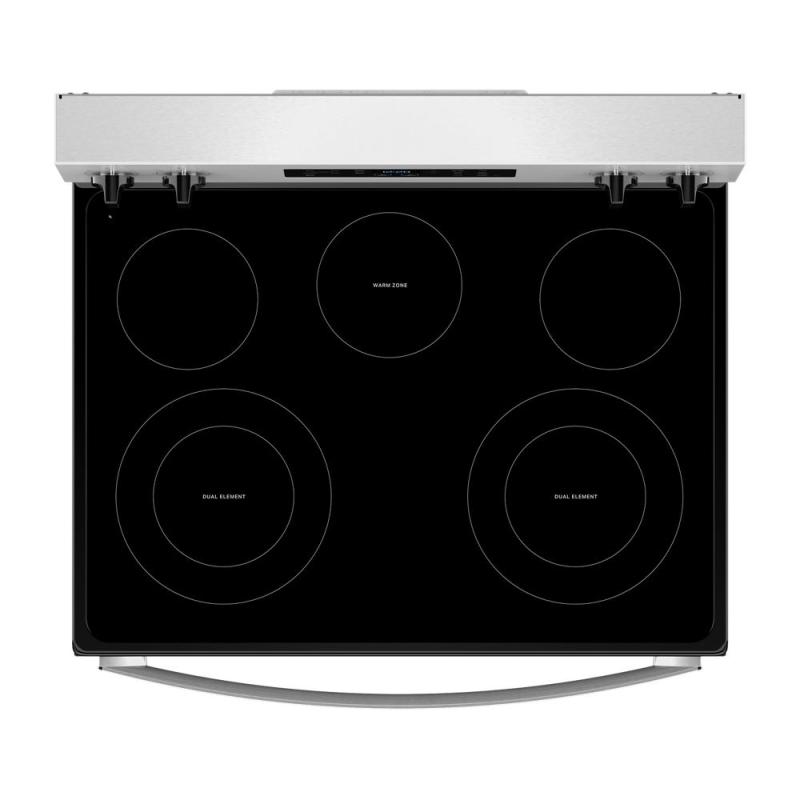

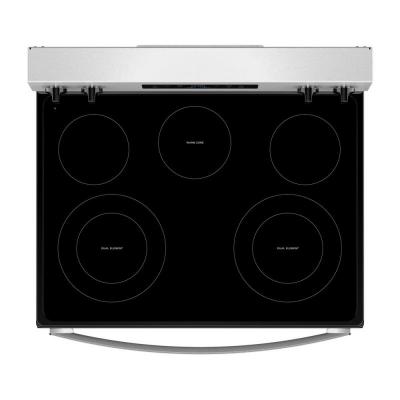

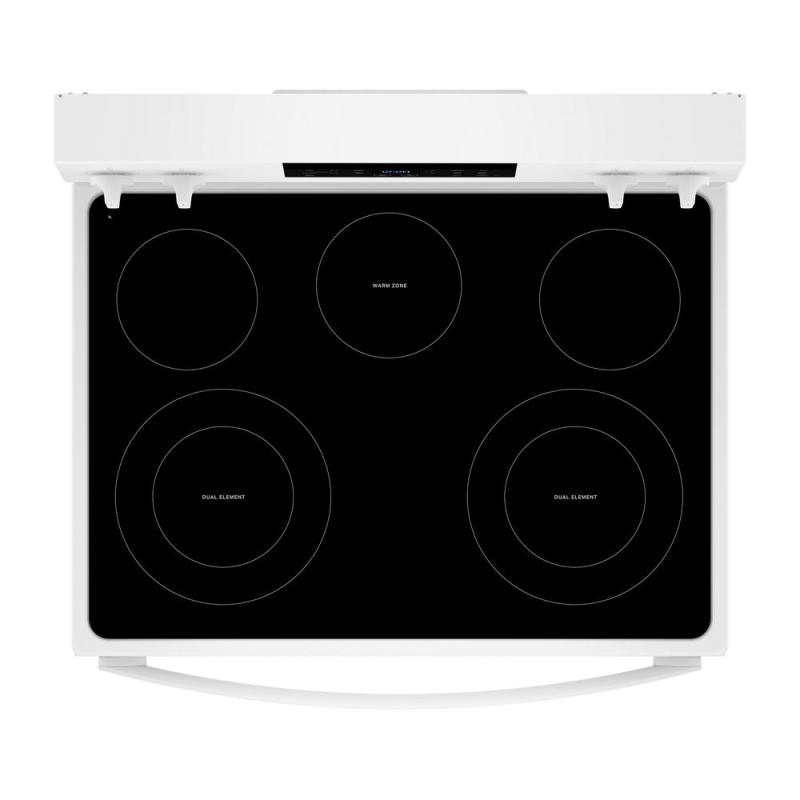

Cooktop Flexibility
Easily cook multiple dishes at once with a Flexible Cooktop that offers a range of element sizes and power levels.

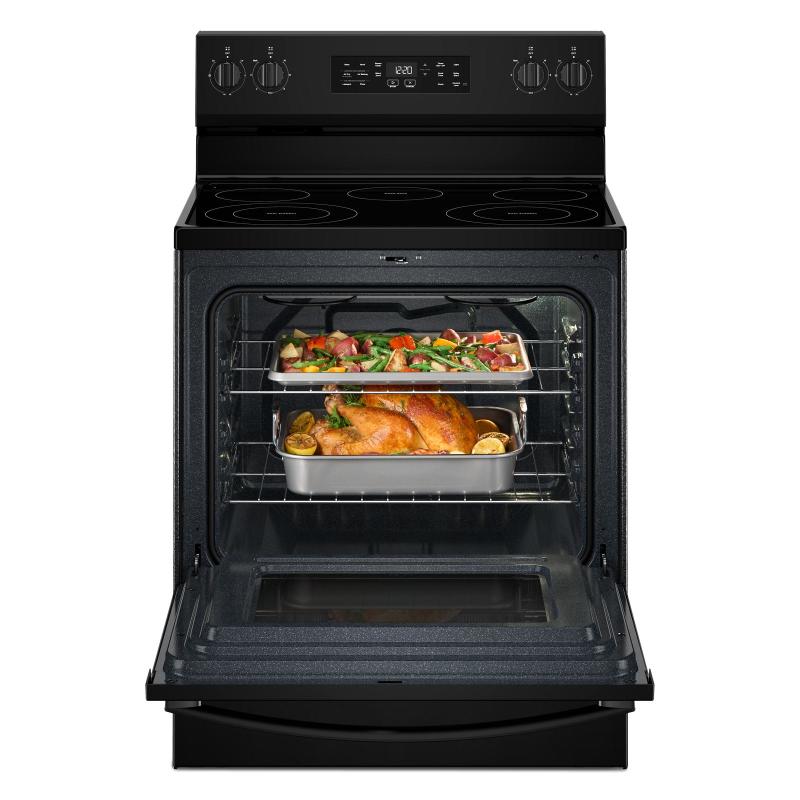

Large Capacity Oven
Cook for a crowd and fit large dishes, like a full-sized turkey, into the spacious, large-capacity 5.3 cu. ft. oven.
Storage Drawer
Easily store kitchen items from baking sheets to cooking pans in the storage drawer to free up space elsewhere in your kitchen.
Sabbath Mode
Sabbath mode keeps the oven in Bake mode until it can be shut off, allowing you to cook and warm food during the Sabbath. All other oven settings, including temperature displays, sounds, changes in light status and cleaning cycles will be disabled.
Dimensions | |
---|---|
Depth | 27.75 " |
Width | 29.88 " |
Height | 47.88 " |
Cutout Depth | 24.0 " |
Cutout Height | 36.0 " |
Cutout Width | 30.0 " |
Depth Closed Excluding Handles | 25.31 " |
Depth Closed Including Handles | 28.0 " |
Depth With Door Open 90 Degree | 46.69 " |
Carton Depth | 29.0 " |
Carton Height | 49.0 " |
Carton Width | 32.0 " |
Gross Weight | 160.0 lbs |
Maximum Height | 47.88 " |
Minimum Height | 46.88 " |
Capacity FT3 (cubic feet) | 5.3 |
DETAILS | |
Oven Control Location | Rear Control |
Rack Guide Type | Embossed |
Oven Rack Type | 2 Standard |
Oven Light Type | Halogen |
Oven Light Switch Location | Oven Control |
Oven Interior Width In Inches | 24.5 |
Oven Interior Depth In Inches | 18.5 |
Oven Cooking System | Convection |
Oven Control Type | Tap Touch |
Oven Control Knob Type | N/A |
Oven Cleaning Type | Steam Clean |
Number Of Rack Guides | 5 |
Number Of Oven Racks | 2 |
Number Of Oven Lights | 1 |
Interior Color | Grey |
Hidden Bake Element | Hidden |
Cooktop Surface Material | Glass |
Convection Functions | No |
Convection Element Type | Fan |
Broiler Location | Top Center |
Broiler Element Power | 3400W |
Bake Element Power | 2400W |
ELECTRICAL | |
Amps | 40 |
Watts | 7900 |
Volts | 208 |
Power Cord Included | No |
Hz | 60 |
Exterior | |
Handle Type | Reach-Through Handle |
Handle Material | Metal |
Handle Color | White |
Drawer Type | Storage Drawer |
Door Removable | Yes |
Cooktop Details | |
Center Rear Element Burner Size | 6in. |
Center Rear Element Burner Power | 100W |
Left Front Element Burner Size | 9in./6in. |
Left Front Element Burner Power | 3000W |
Cooktop Element Style | Ceran |
Cooktop Control Type | Knobs |
Cooktop Control Location | Backguard |
Cooktop Configuration | All Burners |
Center Rear Element Burner Type | Warming |
Left Front Element Burner Type | Dual |
Right Rear Element Burner Size | 6in. |
Right Rear Element Burner Type | Standard |
Right Rear Element Burner Power | 1200W |
Right Front Element Burner Type | Dual |
Right Front Element Burner Size | 12in./9in. |
Right Front Element Burner Power | 3000W |
Number Of Cooking Element Burners | 5 |
Left Rear Element Burner Type | Standard |
Left Rear Element Burner Size | 6in. |
Left Rear Element Burner Power | 1200W |

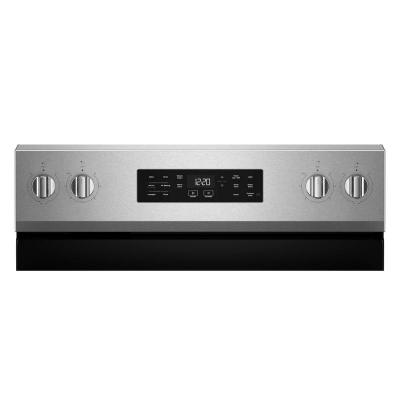

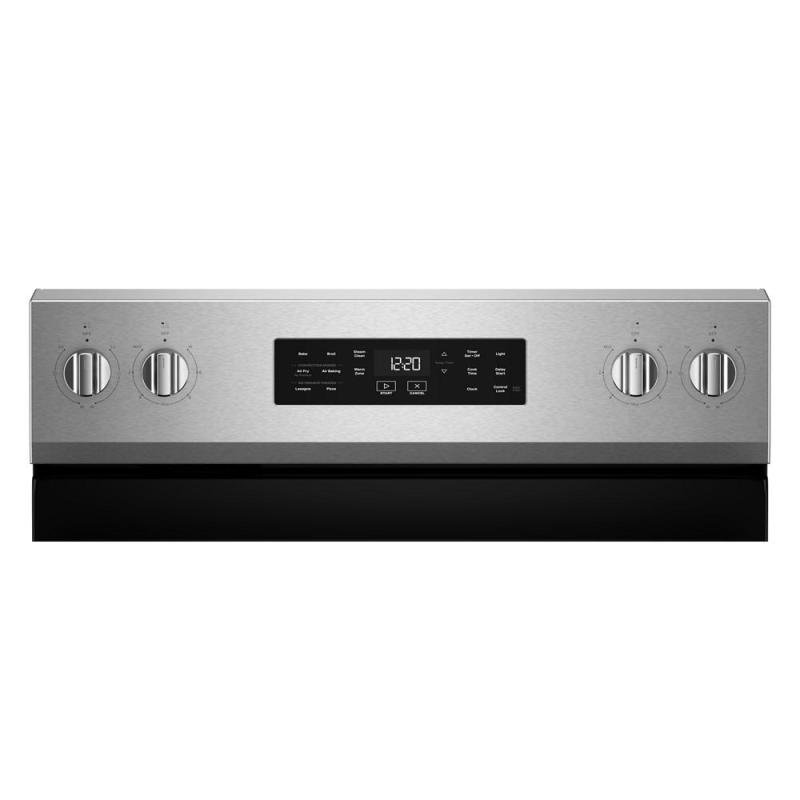

CONTROLS | |
Control Type | Knobs |
Knob Type | Plastic |
Knob Color | White |
Specifications | |
Optional Accessories | 4396096RB, W11692811 |
Dishwasher Safe | No |
Country Of Origin | USA |
Features | |
Power Outage Compatible | Yes |
Hot Surface Indicator Light | Yes |
Heating Element On Indicator Light | Yes |
Griddle | No |
Automatic Convection Conversion Temperature Adjust | No |
Configuration | |
Range Configuration | Freestanding |
Oven Configuration | Single Oven |
Configuration and Overview | |
Fuel Type | Electric |
Certifications | |
UL | Yes |
Star K Certified | Star K Certified |
CUL | Yes |
ADA Compliant | No |
Description | |
Size In | 30 |
Range Type | Freestanding |
