Bosch Recirculation Kit for Downdraft - HDDREC5UC
Literature
When Ducting To The Exterior Is Not Feasible, Downdraft Recirculation Kit Allows Filtered Air To Reenter The Kitchen While Cooking
- Designed To Work With Both 30" and 36" Bosch Downdrafts, HDD Series
- Approved For Use With Electric and Induction Cooktops Only
- Air Is Filtered Through Charcoal Filter, Then Reenters Kitchen

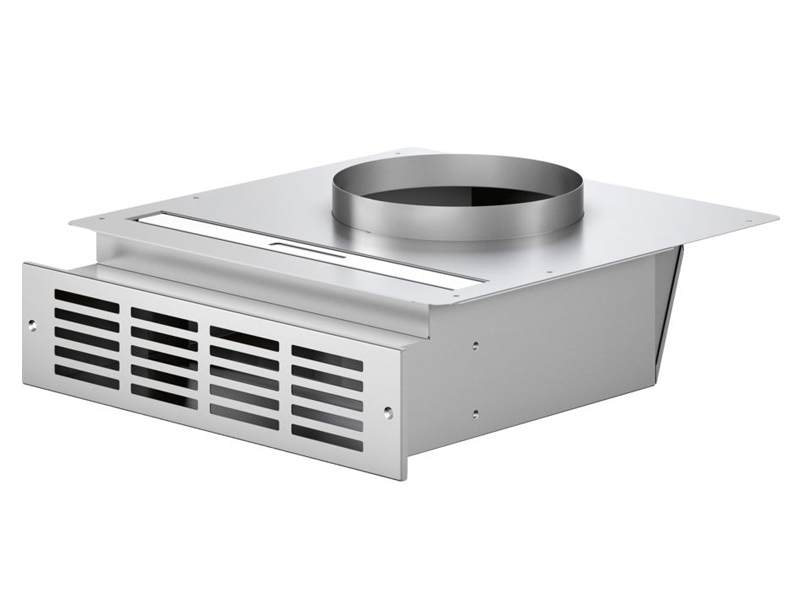

- Includes Recirculation Module, Filter and Metal Grille Vent Plate
Design
- Designed To Mount At Interior Base Cabinet So Module Is Unseen
Performance
- High Quality Charcoal Filter Effectively Captures And Filters Odors
- Replace Charcoal Filter Every 6 Months Depending On Usage
- Downdraft Charcoal Filter Replacement Model Number Is HDDFILTUC
Convenience
- Module And Grille Vent Plate Can Be Placed So Air Does Not Hit Feet
- See Installation Manual For More Details
Technical data | |
---|---|
Brand | Bosch |
Name of product image | MCSA02500620_i5200_1875052_HDDREC5UC_geschlossen_02_def.jpg |
Construction type | Built-in |
Height of the packed product (mm) | 165 mm |
Width of the packed product (mm) | 464 mm |
Depth of the packed product (mm) | 413 mm |
SKU | HDDREC5UC |
Product name / series name | product line supplement cooker hood |
EAN code | 4,242,002,907,062 |
Gross weight (kg) | 3.63 kg |
Height of the product (mm) | 17 mm |
Product group | Hood |
UPC code | 825225920335 |
EAN Barcode | ' 2E20AC-jahagc |
Standard number of units per pallet | 40 |
Internal article number | 000000000000717974 |
Net weight (kg) | 3.237 kg |
Product group for which the accessory is available | Hood |
Product packaging dimensions (HxWxD) (mm) | 165 x 463 x 412 mm |
Other data | |
EAN Barcode | ' 2E20AC-jahagc |
Standard number of units per pallet | 40 |
Country of origin | US |
Product packaging dimensions (HxWxD) (mm) | 165 x 463 x 412 mm |
