36'' KitchenAid 6-Burner Commercial-Style Gas Rangetop - KCGC506JSS

Authorized Dealer

Availability
Call for availability

Literature

Product Overview

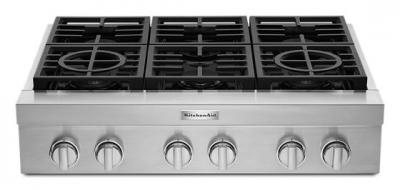

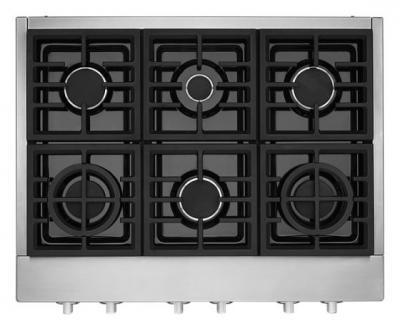

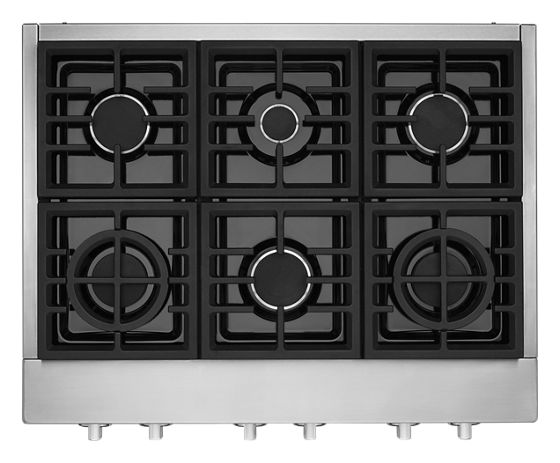

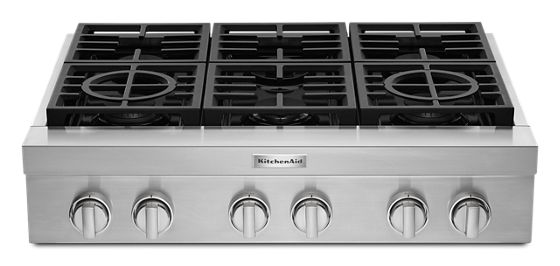

KitchenAid® 36'' 6-Burner Commercial-Style Gas Rangetop

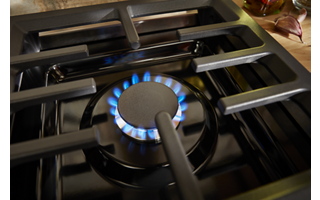

Two 20,000 BTU Ultra Power™ Dual-Flame Burners

give you precise control of powerful highs, steady lows and the wide range of temperatures in between. The versatile, dual-flame design lets you sear, sauté, simmer and sizzle, all on the same burner.

5,000 BTU Simmer & Melt Burner

with a low flame sized for small saucepans lets you reach and maintain low temperatures. Simmer sauces until they look, feel and taste just right and melt even delicate ingredients.

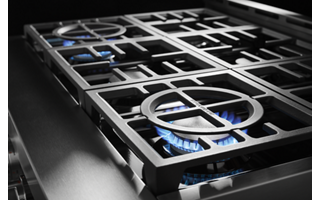

Three-Level Convertible Grates

with removable inserts match the heat to your technique. Leave the insert level for high-heat searing and sautéing, flip it over to lift your pan above the flame to simmer and melt or remove it to nestle a round-bottom wok in the flame for stir-fry.

Cooktop Details
Number of Burner6
LEFT REAR ELEMENT-BURNER POWER15,000 BTU
LEFT FRONT ELEMENT-BURNER TYPEDual-Stacked Burner
LEFT FRONT ELEMENT-BURNER POWER20,000 BTU
IGNITION TYPEFlame-Sensing™ Re-ignition
HOT SURFACE INDICATOR LIGHTNo
HEATING ELEMENT ON INDICATOR LIGHTNo
GRATE DETAILSDishwasher Safe, Matte Finish, Porcelain Coated Cast Grates, Individual
DOWNDRAFT VENTNo
SurfacePorcelain Coated Steel
COOKTOP SURFACE COLORBlack
COOKTOP ELEMENT STYLESealed Burners
COOKTOP CONFIGURATIONAll Burners
CENTER REAR ELEMENT-BURNER TYPESimmer/Melt
CENTER REAR ELEMENT-BURNER POWER5000 BTU
AUTOMATIC PAN DETECTIONNo

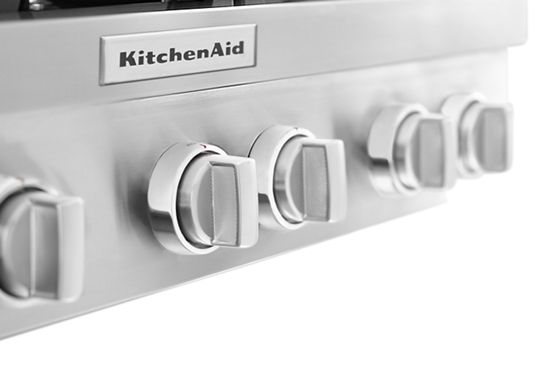

CONTROLS
KNOB COLORStainless Steel
KNOB TYPEMetal
INFINITE HEAT CONTROLSNo
CONTROL LOCATIONFront
Configuration and Overview
SIZE91.44 cm, 36 in
POWER BOOSTNo
LP CONVERTIBLEYes - Kit Included
INSTALLS OVER BUILT-IN OVENNo
Heating TechnologyGas
COOKTOP TYPECommercial
CULCUL
Specification
WIDTH90.80 cm, 35-3/4 in
HEIGHT18.89 cm, 7-7/16 in
DEPTH70.80 cm, 27-7/8 in
CUTOUT DEPTH MIN56.52 cm, 22-1/4 in
CUTOUT WIDTH MAX90.80 cm, 35-3/4 in
CUTOUT WIDTH MIN89.54 cm, 35-1/4 in
Cooktop Details
NUMBER OF GRATES6
NUMBER OF OPEN BAYSNA
RIGHT FRONT ELEMENT-BURNER POWER20,000 BTU
RIGHT FRONT ELEMENT-BURNER TYPEDual-Stacked Burner
RIGHT REAR ELEMENT-BURNER TYPEProfessional
Appearance
DIGITAL DISPLAYNo
Features
POWER OUTAGE COMPATIBLENo
Connectivity
ADA COMPLIANTNo
ULUL
ELECTRICAL
208V COMPATIBLENo
HZ60
POWER CORD INCLUDEDYes
VOLTS120
EndecaProps
PRODUCTOUTLETCATEGORIESCooking
