36"Elica Allasio Design Center EAL336S1

Authorized Dealer

Availability
Call for availability

Literature

NEW ALLASIO

ELICA DESIGN CENTER

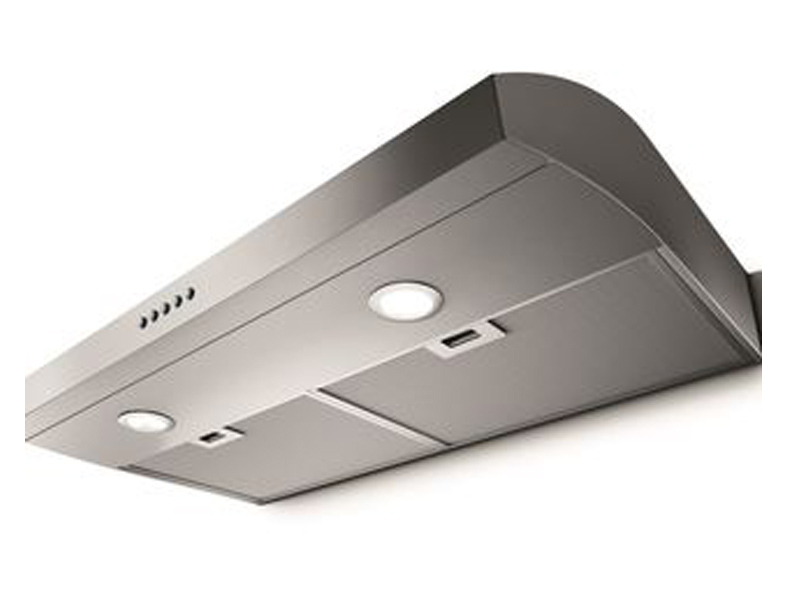

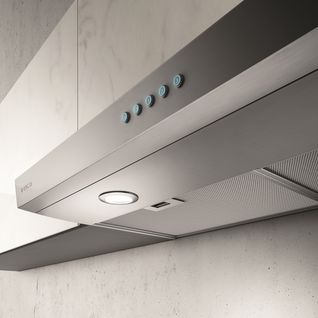

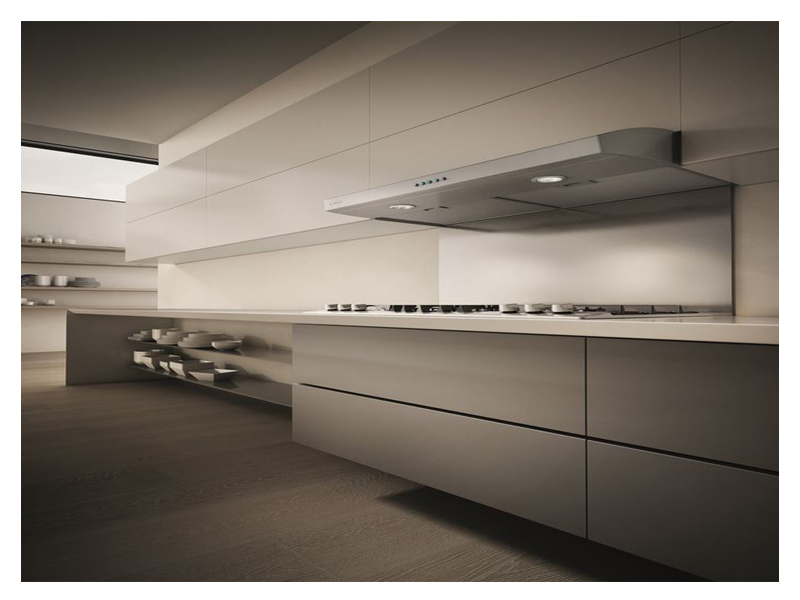

The slim Allasio with 4 3/4” height is ideal where under-cabinet space is limited, plus the contemporary styling and gleaming colors will compliment other appliances and most cabinetry. Allasio features a 3-speed, 300 CFM internal blower, which provides sufficient ventilating power for most kitchens. The attractive, backlit push button controls illuminate an elegant blue glow when activated and allows the user to manage blower speeds and dual LED lamps.



Dishwasher-safe anodized aluminum mesh filters are easy to clean and a snap to remove and replace. Available in 30” or 36” widths, Allasio is designed for standard ducted installation, and can be installed as a recirculating system, using the Recirculating Kit.

Specification
Size (in) & Type 30” or 36” Wide Under-Cabinet
FinishStainless steel
ControlsBacklit Electronic Push Button Controls
Illumination2, 40 W LED, 1 Light Intensity (included)
Installation TypeDucted or Recirculating Installation Recirculating Kit Sold Separately
Blower Type300 CFM, 3-Speed Internal
Blower Performance Speed 1, 120 CFM, 1.6 Sones Speed 2, 210 CFM, 3.5 Sones Speed 3, 300 CFM, 5.0 Sones
Filter Type2, Dishwasher-Safe, Aluminum Mesh Grease Filters
Duct Transition3 1/4” x 10” with Back Draft Damper (top or rear) or 7” Round (top) Sold Separately
Electrical120V-60Hz 360 Watts at 4.3 Amps
Warranty2 Year Parts & Labor, In-Home Service
