36" Elica Under Cabinet Modena - EMD536S3

Authorized Dealer

Call for availability

More options
30 36

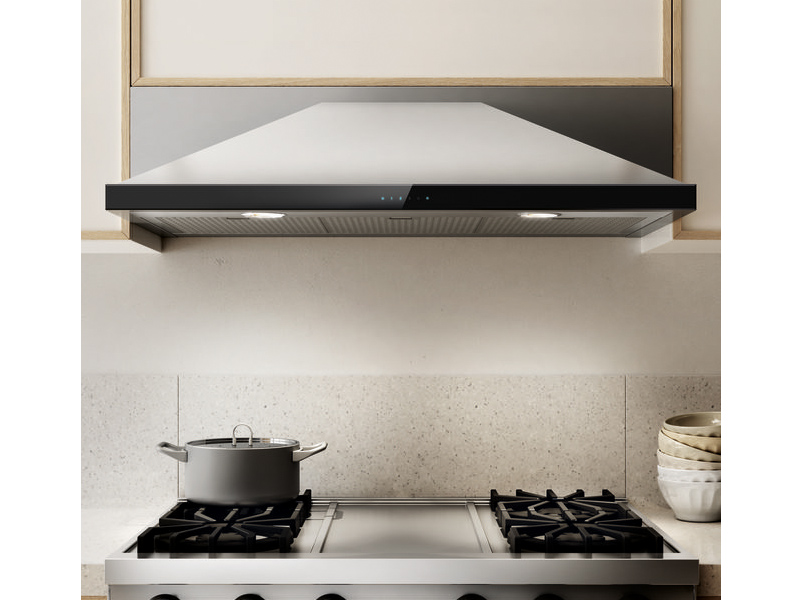

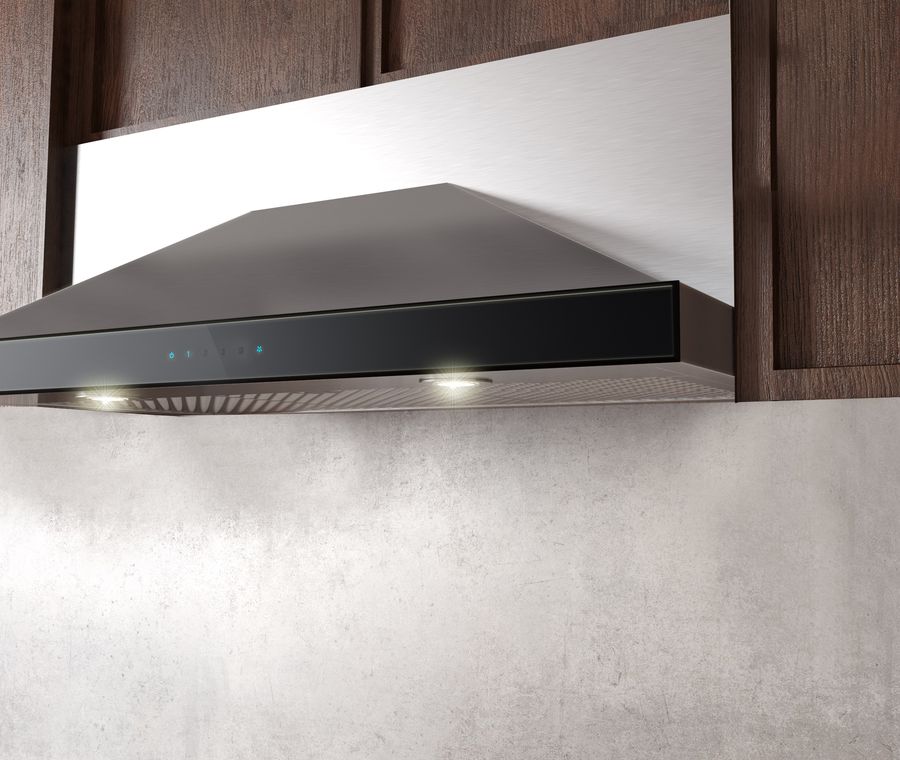

Versatility to suit almost any kitchen. Modena offers a classic designer chimney appearance for under-cabinet installations, with a striking 9" high pyramid shape. Modena also provides high-end features not commonly found in under-cabinet hoods, including 520 CFM blower, LED lighting with dimmable features, stainless steel microhole filters and easy-to-use touch controls. It also has HeatGuard technology which detects excessive heat and automatically adjusts the blower speed.

Available in 30" or 36" width, and designed for standard ducted installation, Modena can also be installed as a recirculating system using the kit available as an accessory.

Product Benefits

Ambient light

Elica studies on hood lighting leaves no stone unturned. Here we have thought about products not only able to light the cooktop, but the entire kitchen space. And so the hood is transformed: from a kitchen appliance to a true lighting element. Considering the design of Elica hoods, it is not hard to imagine how this option is quite unique, and represents one extraordinary point of strength for us.

CFM Reduction

CFM Reduction System (CRS), is an exclusive feature to Elica hoods, which enables the user to reduce directly in the glass touch control the maximum blower CFM, to meet local code requirements.


The Dimmer allows you to adjust the brightness of the light as you wish. With Elica, lighting is customized in a discreet, personal and practical way, in order to contribute in creating the perfect kitchen atmosphere.

Hush System

An exclusive sound deadening technology that effectively reduces sound levels up to 35%, compared to typical range hoods.

LED Light

LED lighting is undoubtedly the smartest solution in terms of energy saving. Expected life time of over 20.000 hours, represents the most remarkable advantage of LED light bulbs.

Touch Control

Enjoy the modern design and convenience of multi-function electronic touch controls, which are discreetly hidden behind sleek black glass, and will illuminate a soft blue when activated.

ControlsTouch Control 3S + Booster
FinishStaineless Steel + Black Glass
Width30’’, 36’’
SonesMin 1.73 Max 6
Extraction capacity520 CFM
Illumination2 Premium LED Dimmable Lights
Installation TypeDucted
Blower TypeSpeed 1, 170 CFM Speed 2, 280 CFM Speed 3, 430 CFM Speed 4, 520 CFM
Filter Type 2 Dishwasher- Safe, Staineless Steel Microhole Filter
Noise (sones): Min: 1.73, Max: 6 Sones
Electrical120 Volts, 60 Hertz, 455 Watts, 3.8 Amps
Duct Transition Rectangular 3" x 1/4" x 10"
