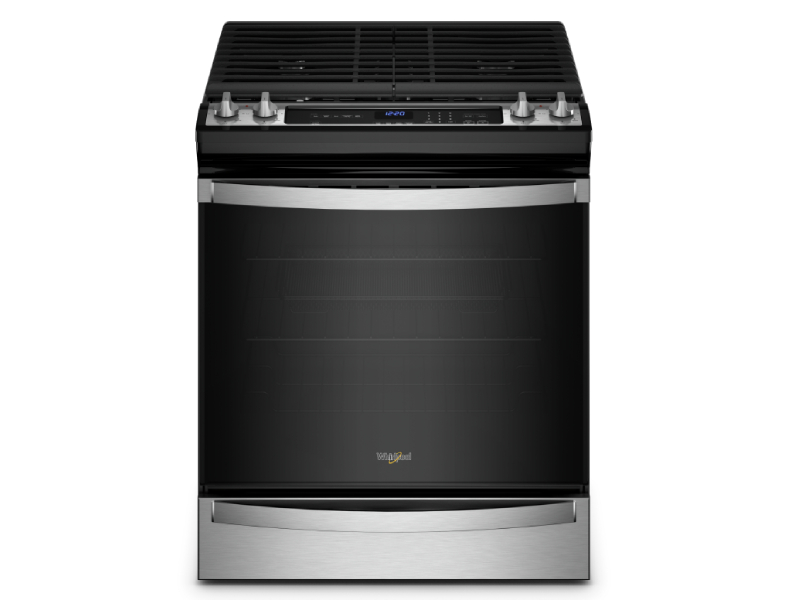

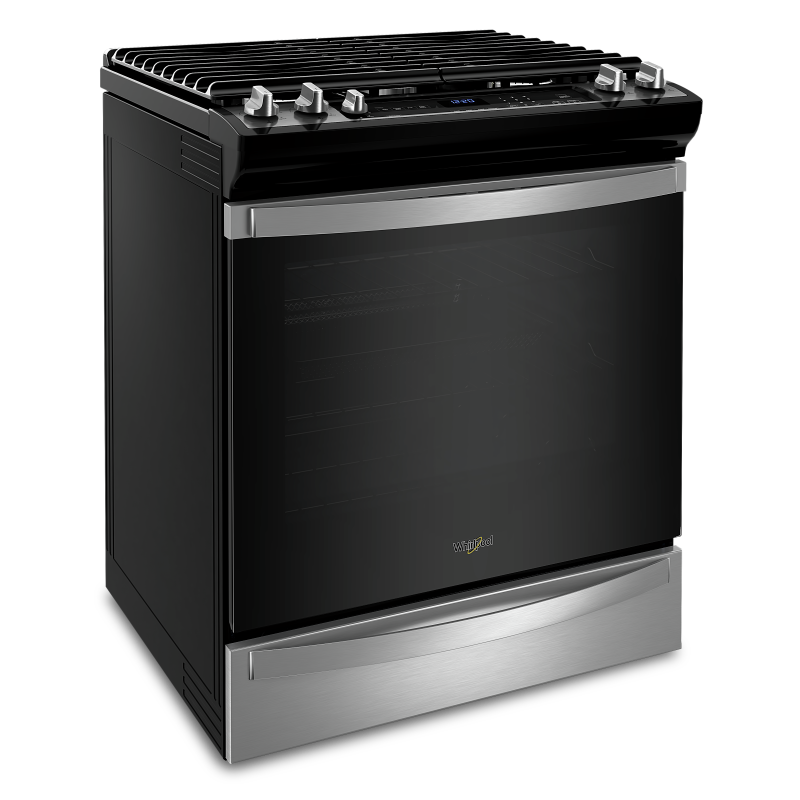

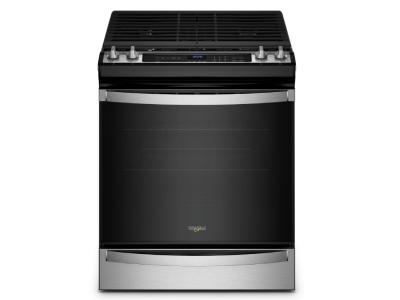

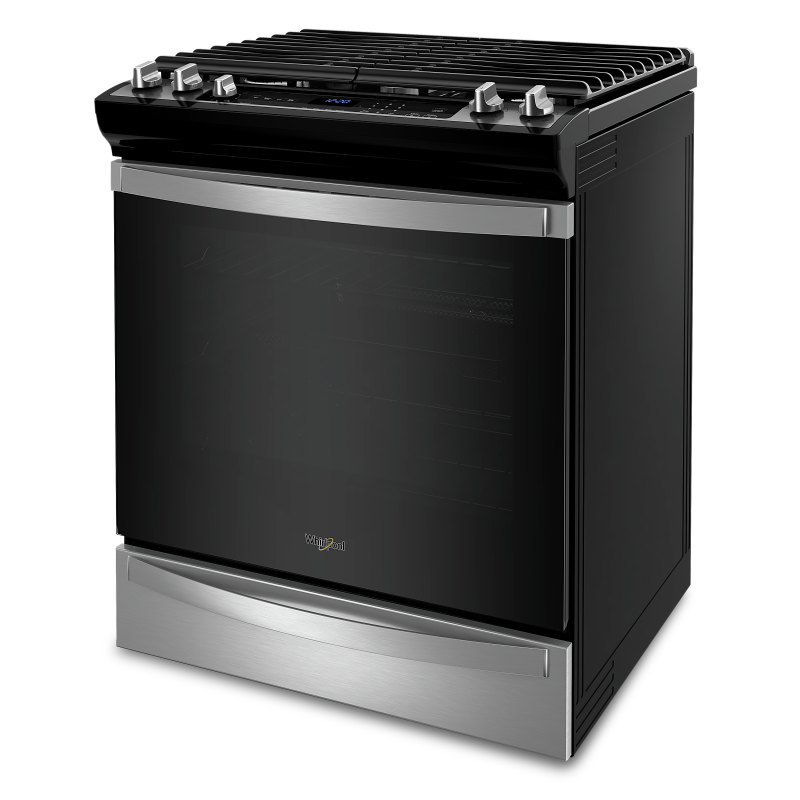

30" Whirlpool 5.8 Cu. Ft. Slide in Gas Range - WEG745H0LZ
Top 3 Features
7-in-1 Oven
Cook however you want with 7 cooking modes in 1 oven: Air Fry, Convect Bake, Convect Broil, Frozen Bake™, Bake, Broil and Keep Warm cycles. This range gives you the flexibility to cook a variety of dishes by combining multiple cooking modes in one oven.

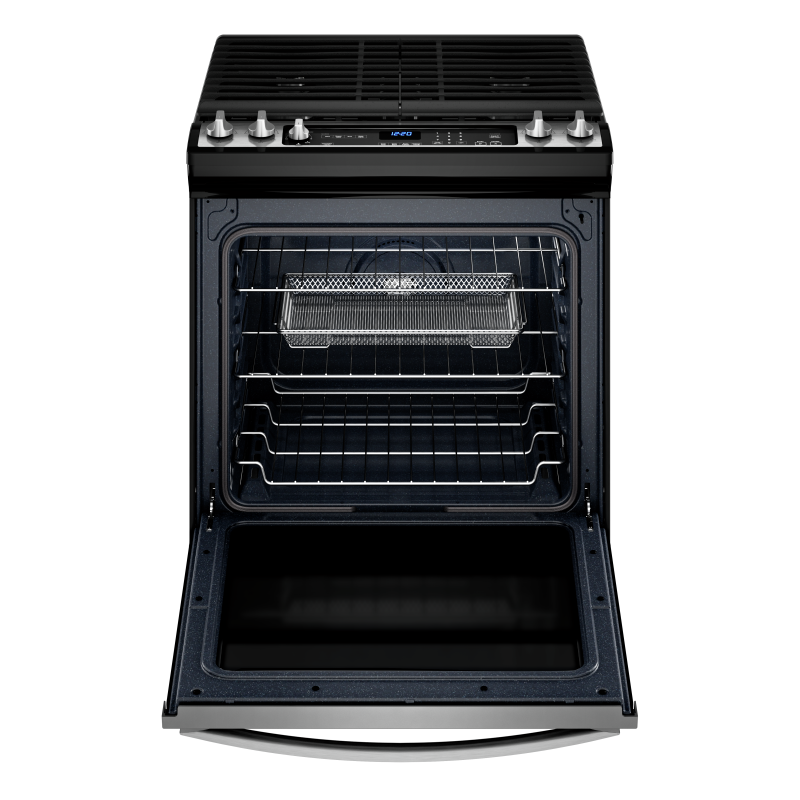

Air Fry Mode
Skip preheating and air fry chicken nuggets, wings, fries and more to get crispy results right in your oven. The Air Fry Mode circulates hot air around the air fry basket to cook fried food in a healthy way, with less oil than traditional frying.
Dishwasher-Safe Air Fry Basket
Skip the scrubbing by putting the Dishwasher-Safe Air Fry Basket right in the dishwasher when it gets messy.
Additional Features

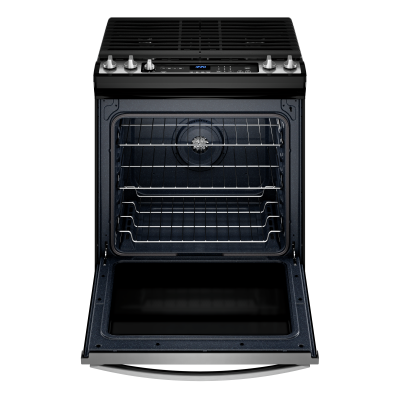

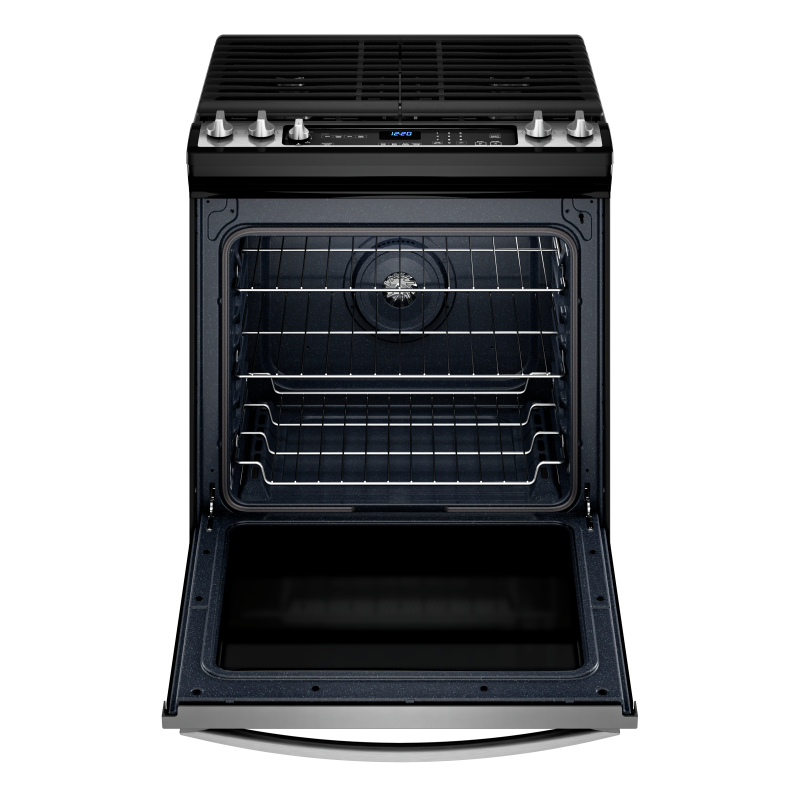

True Convection Cooking
Quickly bake multiple items at once with True Convection Cooking. The oven fan circulates hot air from three heating elements around the oven so you can cook foods fast and don’t have to move dishes around as you cook.

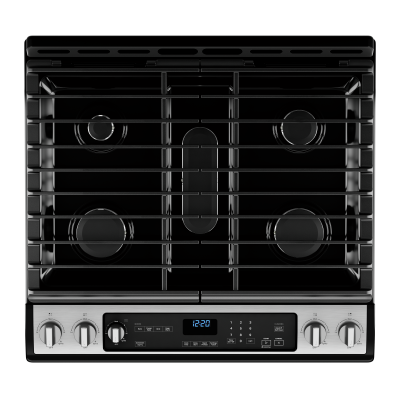

EZ-2-Lift™ Hinged Cast-Iron Grates
Get quick access to spills on the cooktop with our industry-first EZ-2-Lift™ Hinged Cast-Iron Grates. The hinged design lets you wipe up underneath without removing them.
Frozen Bake™ Technology
Skip preheating and cook frozen favorites like pizza in fewer steps with preprogrammed settings.
Rapid Preheat
Save time when you only need to bake on one rack. Rapid Preheat uses all of the elements and a rear fan to heat the oven quickly.
Keep Warm Setting
Keep dishes from getting cold with this setting that delivers low heat to the oven.
SpeedHeat™ Burner
Get dinner to the table fast with this burner that generates the high heat needed to sear and boil quickly.
5.8 Cu. Ft. Capacity
Easily cook a whole meal with 5.8 Cu. Ft. Capacity.
Fingerprint Resistant
Resists fingerprints and smudges with steel that easily wipes clean. Available in Black Stainless Steel.

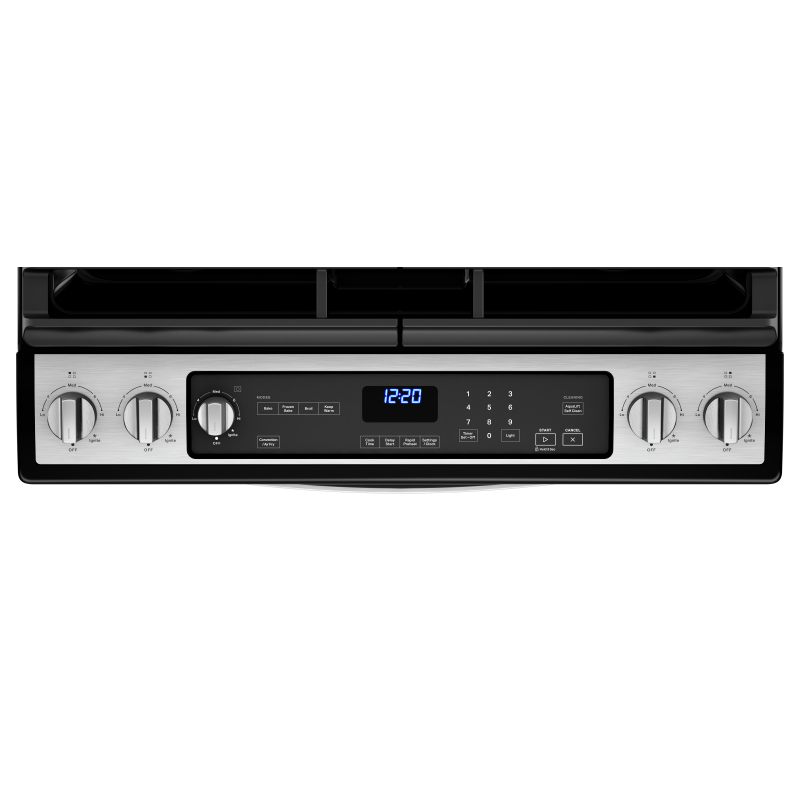

Control Lock Mode
Disable the control panel to avoid unintended use and easily clean the controls.
Broil Setting
When you place food close to the oven’s top heating element using the Broil Setting, you can quickly sear meat, char vegetables, brown lasagna, caramelize the top of a casserole and more.

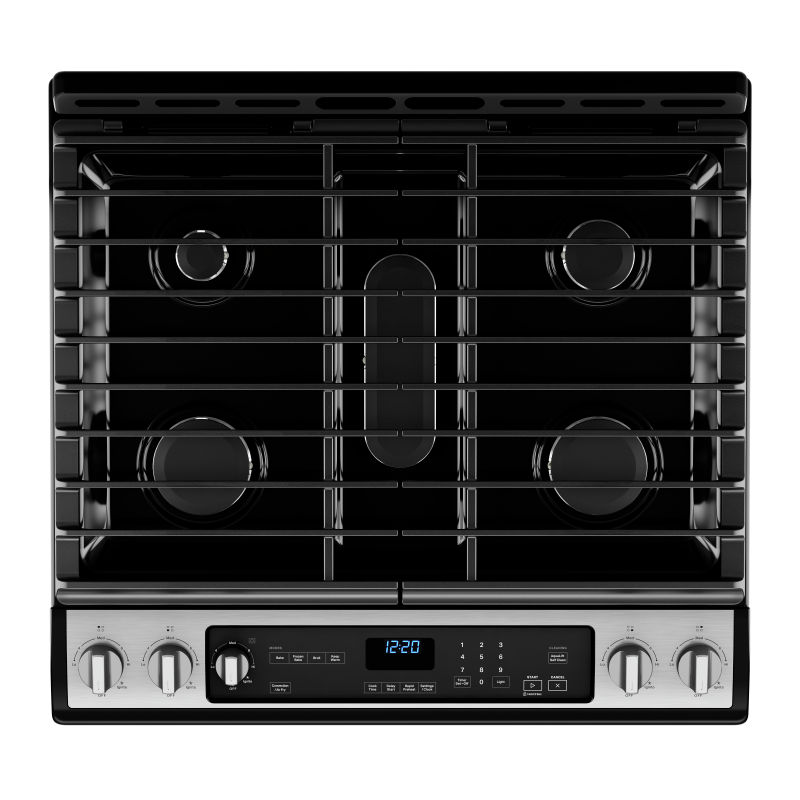

Center Oval Burner
Easily fit large griddles and other longer cookware on this fifth burner so they heat evenly on the cooktop.
Hidden Bake Element
A hidden bake element under the floor of the oven creates a smooth surface inside the oven that’s easier to clean.
Storage Drawer
A Storage Drawer in the bottom of your range allows easy access to the items you use most and opens up space elsewhere.
Dimensions | |
---|---|
Cutout Depth | 24.0 in |
Cutout Height | 36.0 in |
Cutout Width | 30.0 in |
Depth | 28-1/2 in |
Depth Closed Excluding Handles | 27-7/8 in |
Depth Closed Including Handles | 28-7/8 in |
Depth With Door Open 90 Degree | 48-1/2 in |
Height | 39-481/500 in |
Maximum Height | 39-481/500 in |
Minimum Height | 38-481/500 in |
Width | 29-7/8 in |
Description | |
Size | 30 |
Configuration and Overview | |
Range Type | Slide-in |
Exterior | |
Door Removable | Yes |
Handle Color | Stainless Steel |
Handle Material | Metal |
Handle Type | Reach-Through Handle |
Oven Window Size | Extra Large |
CONTROLS | |
Colour | Blue |
Electronic Display Type | LED |
Features | |
Griddle | Optional Accessory |
Heating Element On Indicator Light | Yes |
Hot Surface Indicator Light | Yes |
LP Convertible | Yes - Kit Included |
Power On Indicator Light | Yes |
Total Gas BTUs - Oven | 31000 |
Total Gas BTUs - Cooktop | 54200 |
Power Outage Compatible | Yes |
DETAILS | |
Bake Element Power | 18,000 BTU |
Automatic Shut-Off | No |
Broiler Location | Top of Oven |
Convection Element Power | 925 |
Convection Cooking Technology | True-Bow Tie |
Convection Cooking Technology | Bake, Broil |
Hidden Bake Element | Yes |
Interior Color | Grey |
Number of Oven Lights | 1 |
Number of Oven Racks | 3 |
Number of Rack Guides | 7 |
Cleaning Type | AquaLift Self Clean |
Oven Control Knob Color | Stainless Steel |
Oven Control Location | Front |
Control Type | Electronic Touch |
Oven Light Switch Location | Top of Console |
Oven Interior Depth | 20-5/8 in |
Oven Interior Width | 24-3/8 in |
Oven Interior Height | 22-1/8 in |
Oven Light Type | Incandescent |
Oven Rack Type | 2 Standard and 1 Max Capacity |
Features | |
Convection Cooking Technology | True Convection |
Cooktop Details | |
Auto Re-ignition | No |
Center Front Element-Burner Type | Warming |

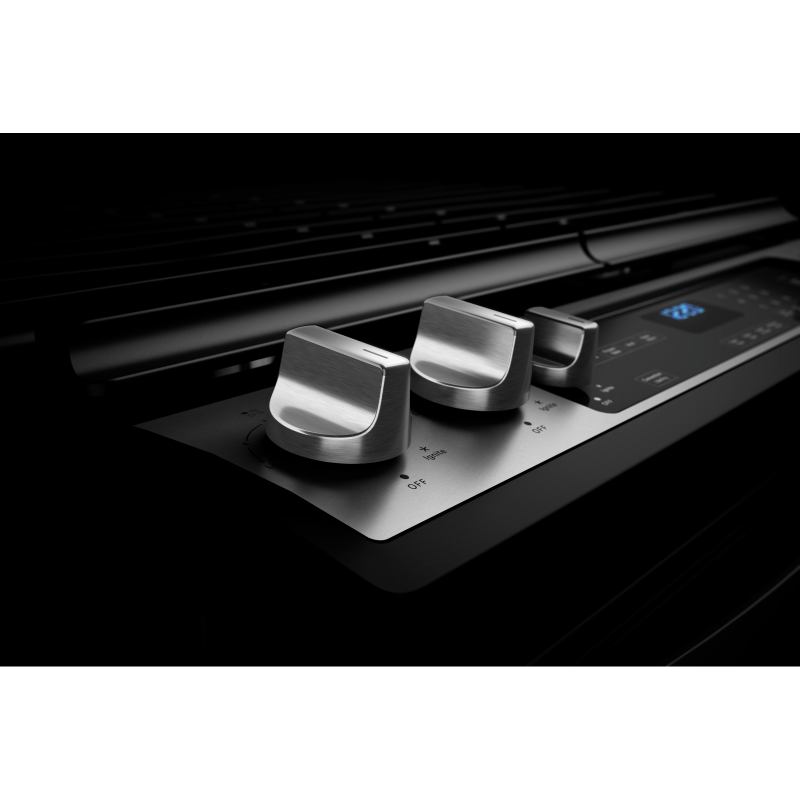

Cooktop Control Knob Color | Stainless Steel |
Cooktop Control Knob Type | Dishwasher-Safe Weighted |
Cooktop Control Location | Front |
Control Type | Knobs |
Cooktop Element Style | Sealed Burners |
Cooktop Surface Color | Black |
Cooktop Surface Material | Porcelain Coated Steel |
Grate Details | Dishwasher Safe, Matte Finish, Porcelain Coated Cast Grates, Rear Hinged Grate |
Ignition Type | Direct Spark Ignition |
Left Front Element-Burner Power | 17,000 BTU |
Left Front Element-Burner Type | Standard |
Left Rear Element-Burner Power | 5000 BTU |
Number of Burner | 5 |
Right Front Element-Burner Type | Standard |
Dimensions | |
Capacity | 5.80 cu. ft. |
Certifications | |
ADA Compliant | Yes |
CUL | Yes |
Kosher Consumer Friendly | Yes |
UL | Yes |
Compatibility | |
Works With | No |
ELECTRICAL | |
Amps | 15 |
Hz | 60 |
Power Cord Included | Yes |
Volts | 120 |
