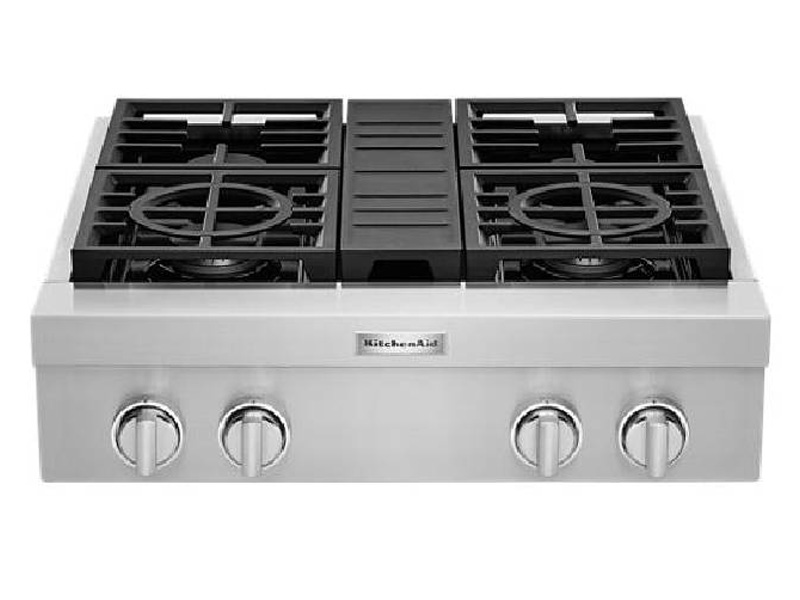

30'' KitchenAid 4-Burner Commercial-Style Gas Rangetop - KCGC500JSS

Authorized Dealer

Availability
Call for availability

Literature

Product Overview

KitchenAid® 30'' 4-Burner Commercial-Style Gas Rangetop

Two 20,000 BTU Ultra Power™ Dual-Flame Burners

give you precise control of powerful highs, steady lows and the wide range of temperatures in between. The versatile, dual-flame design lets you sear, sauté, simmer and sizzle, all on the same burner.

5,000 BTU Simmer & Melt Burner

with a low flame sized for small saucepans lets you reach and maintain low temperatures. Simmer sauces until they look, feel and taste just right and melt even delicate ingredients.

Three-Level Convertible Grates

with removable inserts match the heat to your technique. Leave the insert level for high-heat searing and sautéing, flip it over to lift your pan above the flame to simmer and melt or remove it to nestle a round-bottom wok in the flame for stir-fry.

Additional Features

One 15,000 BTU Burner

delivers the high-heat you need for successful searing, sautéing, stir-frying and quickly bringing large stock pots to a rolling boil.

Cooktop Details
GRATE DETAILSDishwasher Safe, Matte Finish, Porcelain Coated Cast Grates, Individual
DOWNDRAFT VENTNo
SurfacePorcelain Coated Steel
COOKTOP SURFACE COLORBlack
COOKTOP ELEMENT STYLESealed Burner
COOKTOP CONFIGURATIONAll Burners
AUTOMATIC PAN DETECTIONNo
LEFT FRONT ELEMENT-BURNER POWER20,000 BTU
CONTROLS
CONTROL LOCATIONFront
Configuration and Overview
SIZE76.20 cm, 30 in
POWER BOOSTNo
LP CONVERTIBLEYes - Kit Included
INSTALLS OVER BUILT-IN OVENNo
Heating TechnologyGas
COOKTOP TYPECommercial Style
CULCUL
Specification
WIDTH75.56 cm, 29-3/4 in
HEIGHT18.89 cm, 7-7/16 in
DEPTH70.80 cm, 27-7/8 in
CONTROLS
INFINITE HEAT CONTROLSNo
KNOB TYPEMetal
KNOB COLORStainless Steel
Appearance
DIGITAL DISPLAYNo
Cooktop Details
NUMBER OF OPEN BAYS NA
NUMBER OF GRATES4
Number of Burner4
RIGHT FRONT ELEMENT-BURNER TYPEDual-Stacked Burner
Specification
CUTOUT WIDTH75.56 cm, 29-3/4 in
Cooktop Details
RIGHT FRONT ELEMENT-BURNER POWER20,000 BTU
Specification
CUTOUT DEPTH MIN56.52 cm, 22-1/4 in
CUTOUT WIDTH MAX75.88 cm, 29-7/8 in
CUTOUT WIDTH MIN74.30 cm, 29-1/4 in
Cooktop Details
LEFT REAR ELEMENT-BURNER POWER15,000 BTU
LEFT FRONT ELEMENT-BURNER TYPEDual-Stacked Burner
RIGHT REAR ELEMENT-BURNER TYPESimmer/Melt
HEATING ELEMENT ON INDICATOR LIGHTNo
HOT SURFACE INDICATOR LIGHTNo
IGNITION TYPEFlame-Sensing™ Re-ignition
Features
POWER OUTAGE COMPATIBLEYes
Connectivity
ADA COMPLIANTNo
ULUL
ELECTRICAL
208V COMPATIBLENo
HZ60
POWER CORD INCLUDEDYes
VOLTS120
