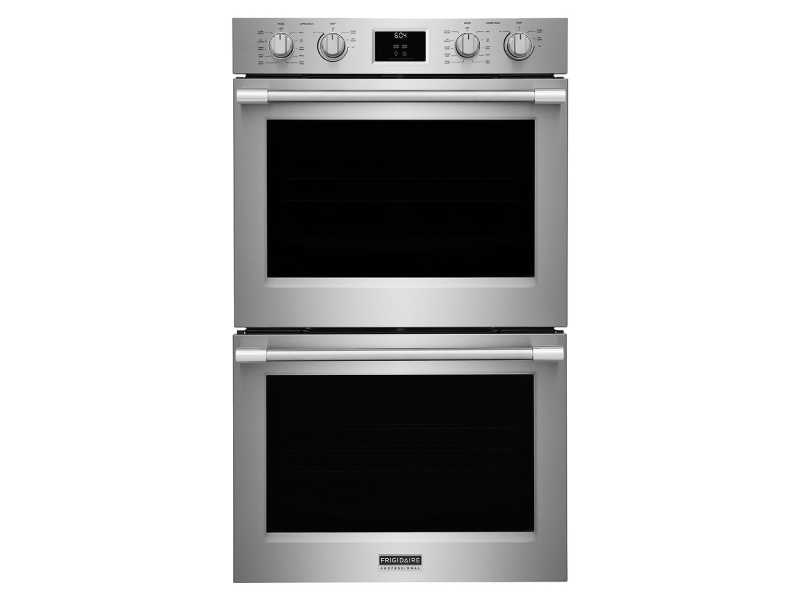

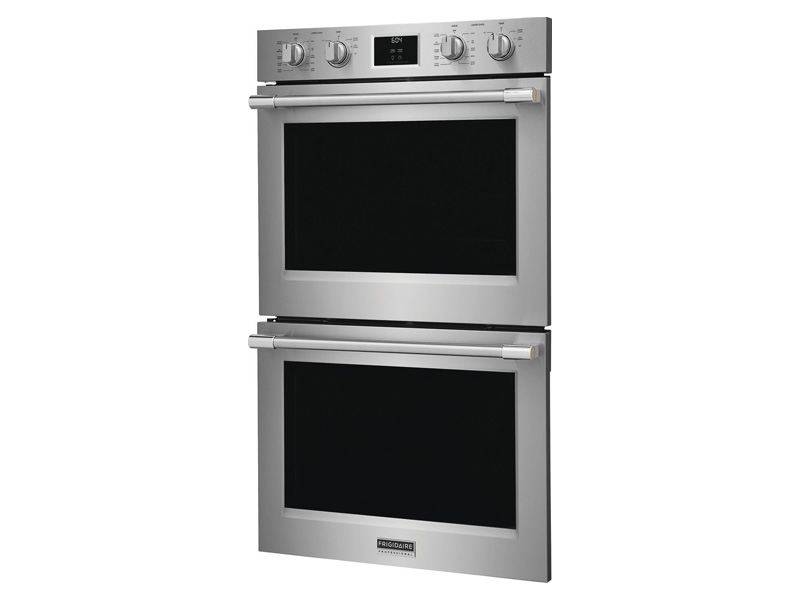

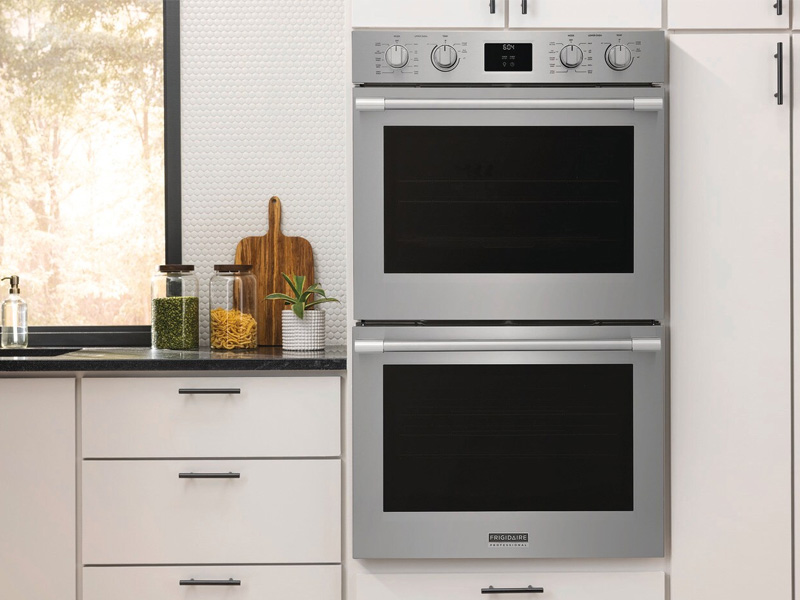

30" Frigidaire Professional Electric Double Wall Oven with Convection in Stainless Steel - PCWD3080AF
30" Frigidaire Professional Electric Double Wall Oven with Convection in Stainless Steel - PCWD3080AF
PCWD3080AF
Features
Our most advanced and powerful convection system, Total Convection - in both ovens.
Total Convection gives you maximum versatility in the kitchen, powering cooking modes like Air Fry, No Preheat, Slow Cook, Convection Bake, Steam Bake, Convection Roast, Steam Roast and and more!
Start baking immediately with No Preheat
Eliminates time wasted waiting on your oven to heat up - simply place your food in the cold oven and get to meal time, in no time. 1
Deliver all of the flavor and none of the guilt with Air Fry.
Air Fry allows you to make healthier and delicious meals for the entire family, right in your oven.

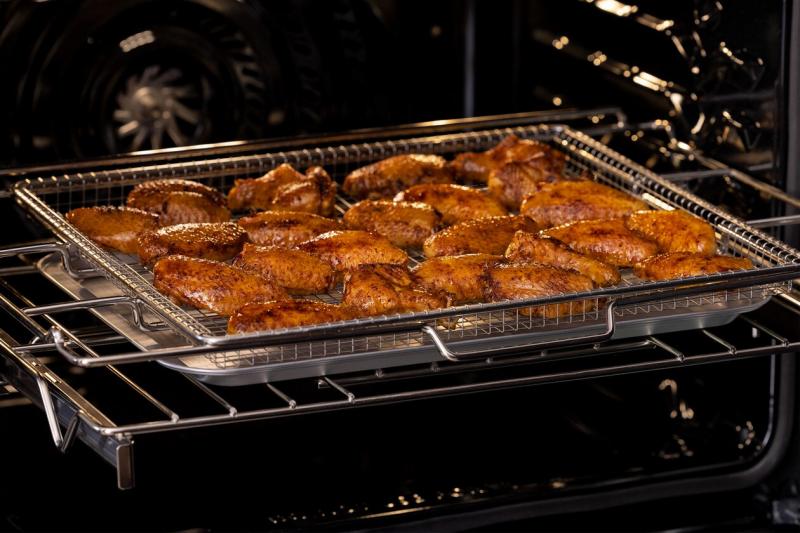

ReadyCook Air Fry Tray is included
For perfectly crispy and delicious Air Fry results. 2
Experience a hassle-free way to cook with Slow Cook
With Slow Cook, your food cooks slowly and at a lower temperature (as low as 100° F), allowing you to lock in moisture and flavor without over or undercooking your food.
Achieve bakery results at home with Steam Bake
With Steam Bake, steam evenly circulates throughout the oven cavity, resulting in breads and muffins that rise higher and are light and fluffy.
Take the guesswork out of cooking with the Temperature Probe
The Temperature Probe monitors and alerts when the desired finished cooking temperature has been reached.
Peace of Mind with our Frigidaire Fit Promise
We promise that your new 30" Frigidaire Professional double wall oven will fit your existing cabinet cutout of the same width and configuration, or we will reimburse you up to $300 for cabinet modification costs. 3
Offers two convenient cleaning options
Enjoy more cleaning flexibility. Select Steam Clean for a quick, 30 minute clean or choose Self Clean, which is available in 2, 3 and 4 hour cycles.
Enjoy crispy, perfectly roasted meals with Steam Roast
Steam Roast uses moisture to make perfectly crispy and tender meats and vegetables that are roasted to perfection.

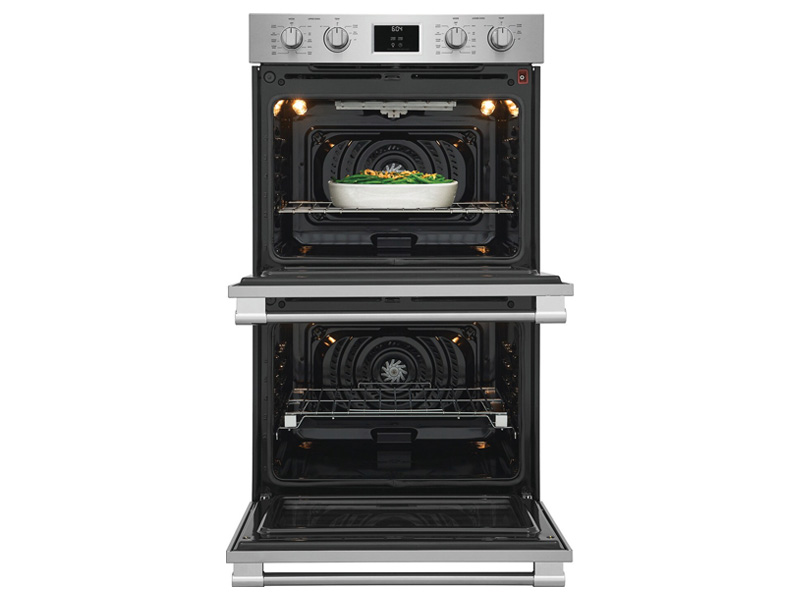

Better access to your meals with our Glide Rack
Our extending Glide Rack makes it easier to monitor and lift your food out of the oven.
Extra Large Oven Capacity
Cook more at once with a combined 10.6 cu.ft. of oven capacity.
Smudge-Proof Stainless Steel
Resists fingerprints and cleans easily.
Dimensions and Volume | |
---|---|
Oven Lower Capacity | 5.3 Cu. Ft. |
Maximum Cutout Width | 29 |
Maximum Cutout Height | 50 1/4 |
Minimum Cutout Width | 28 1/2 |
Minimum Cutout Height | 48 7/8 |
Upper Oven Interior Depth | 19 7/8 |
Upper Oven Interior Width | 25 1/5 |
Upper Oven Interior Height | 18 1/8 |
Lower Oven Interior Depth | 19 7/8 |
Lower Oven Interior Width | 25 1/5 |
Lower Oven Interior Height | 18 1/8 |
Depth With Handle | 27 3/5 |
Depth With Door 90° Open | 48 3/16 |
Depth | 25 3/16 |
Width | 29 7/8 |
Height | 50 3/4 |
Cooking Controls | |
Keep Warm | Yes |
Kitchen Timer | Yes |
Light | Yes |
My Favorite | Yes |
Off | Yes |
Oven Light | Yes |
Preheat | Yes |
Self Clean | Yes |
Probe | Yes |
Set Clock | Yes |
Quick Preheat | Yes |
Slow Cook | Yes |
Start | Yes |
Steam Roast | Yes |
Steam Clean | Yes |
Steam Bake | Yes |
Temperature Display | Yes |
Stop | Yes |
User Preferences | Yes |
Timer On / Off | Yes |
ELECTRICAL SPECIFICATIONS | |
Amps @ 240 Volts | 40 Amps |
Connected Load @ 240V | 9 kW |
Voltage Rating | 240 V |
Minimum Circuit Required | 40 Amps |
Cooking Controls Function | |
Change between Continuous Bake Setting or 12-Hour Energy Saving Feature | Yes |
Delayed Bake | Yes |
Program Fahrenheit or Celsius | Yes |
OVEN | |
Bake Element | 2,500 Watts |
Cooking Controls Function | |
Silent Control Panel | Yes |
OVEN | |
Bake Element Pass | 8 |
Broil Element | 4,000 Watts |
Bake Element Type | Hidden |
Broil Element Pass | 6 |
Broil System | Yes |
Convection | Yes |
Cleaning System | Yes |
Convection Type | Total |
Convection Element | 3,800 Watts |
Number of Convection Fans | 1 |

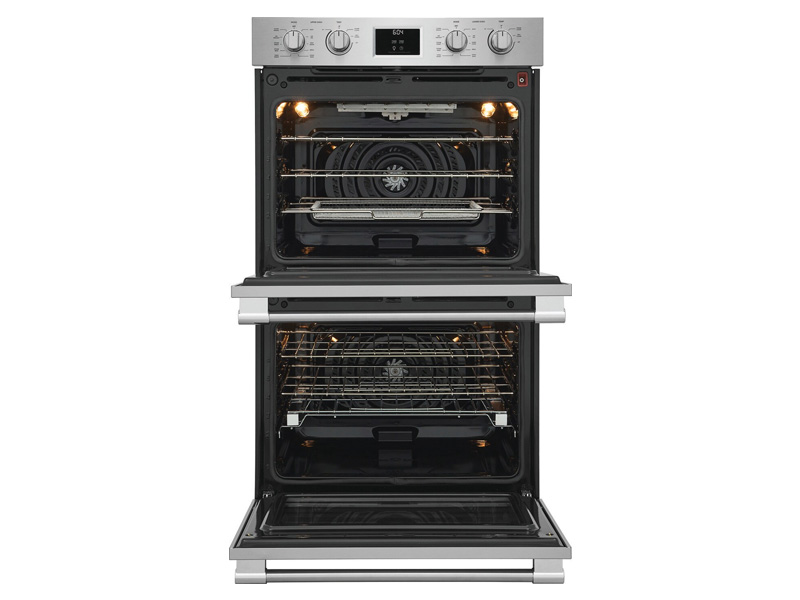

Number of Rack Positions | 6 |
Oven Interior Color | Midnight Black |
Oven Light Quantity | 2 |
Oven Light Type | Halogen |
Oven Light Watts | 40 Watts |
Rack Position Type | Embossed |
Rack Type 1 Quantity | 4 |
Rack Type 1 | Handle |
Rack Type 2 | Glide |
Rack Type 2 Quantity | 1 |
Rack Type 3 | Air Fry Tray |
Rack Type 3 Quantity | 1 |
Installation | |
Power Supply Connection Location | Top Left |
Exterior | |
Exterior Finish | Smudge-Proof Stainless Steel |
Safety Certifications and Approvals | |
CSA Listed | Yes |
UL Listed | Yes |
RoHS | Yes |
Dimensions and Volume | |
Oven Upper Capacity | 5.3 Cu. Ft. |
Total Capacity | 10.6 Cu. Ft. |

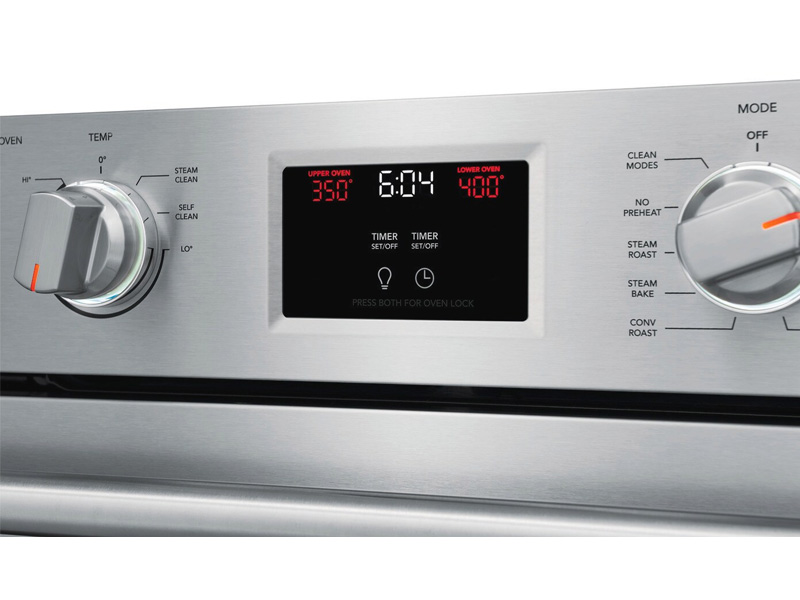

Display | |
Control Location | Top |
Display Interface Color | White |
Display Light Color | White |
Display Type | Capacitive Touch |
General Specifications | |
Frigidaire Fit Promise | Yes |
Product Weight | 285 lbs |
Prop 65 Label | Yes |
Warranty - Labor | 1 Year |
Warranty - Parts | 1 Year |
CONTROLS | |
Control Lock | Yes |
Sabbath Mode | Yes |
Cooking Controls | |
Air Fry | Yes |
Bake | Yes |
Bread Proof | Yes |
Broil | Yes |
Cancel | Yes |
Child Lock | Yes |
Clear Off | Yes |
Clock | Yes |
Convection Bake | Yes |
Convection Roast | Yes |
Delay Clean | Yes |
Delay Start | Yes |
Fast Preheat | Yes |
