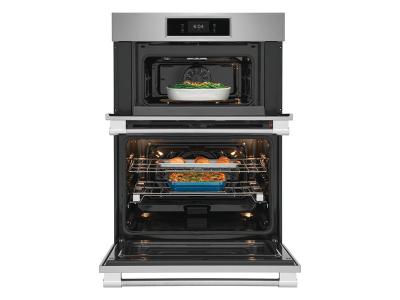

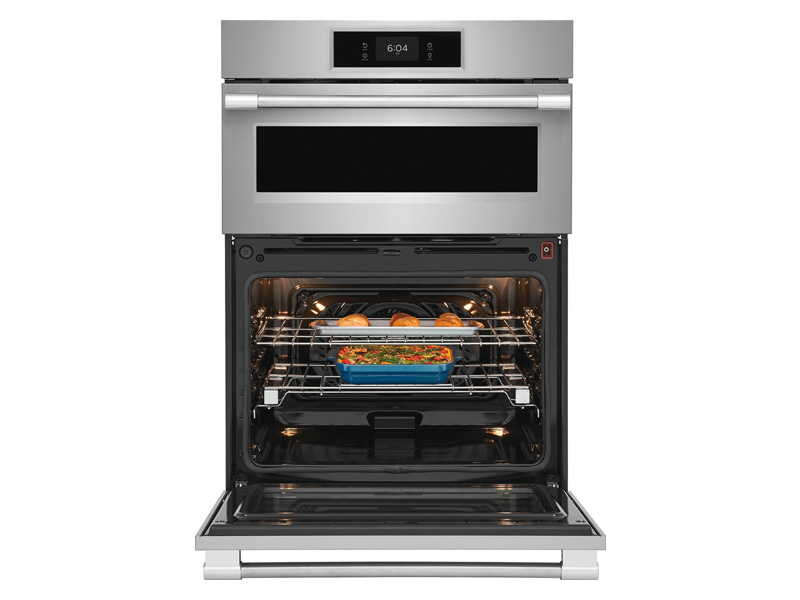

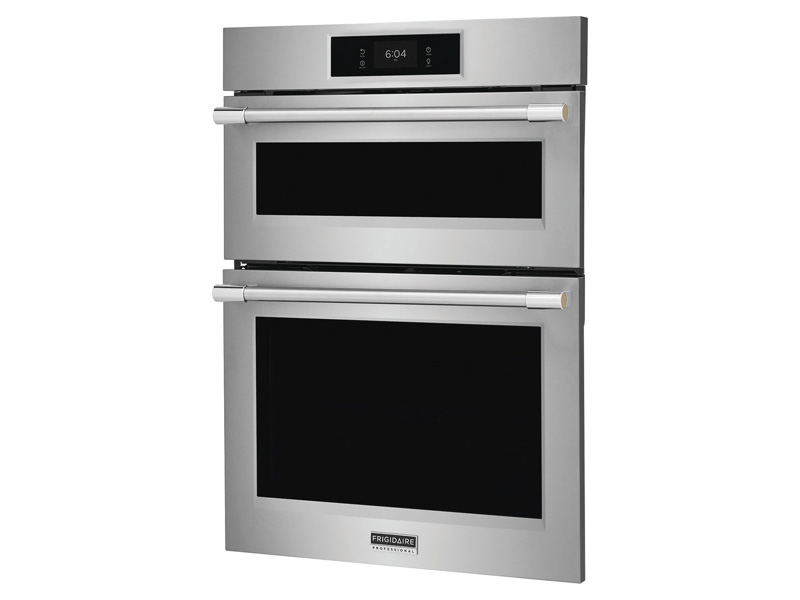

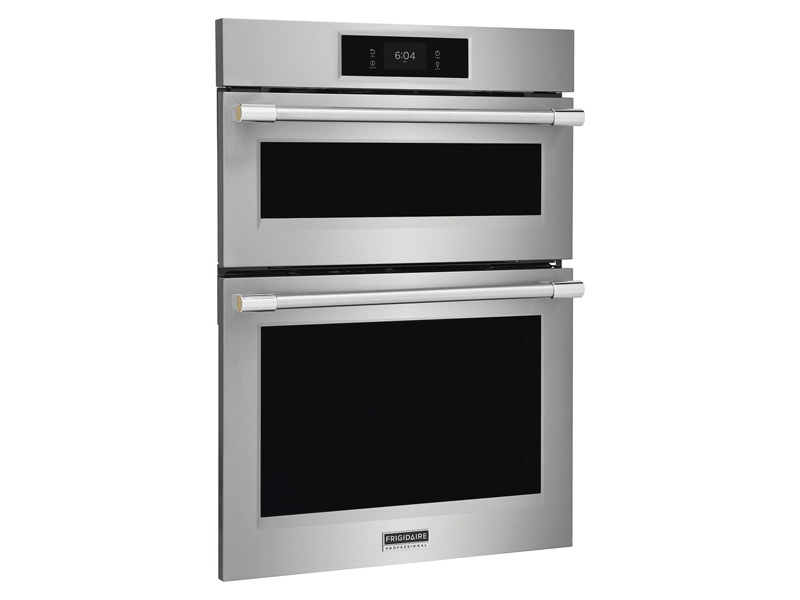

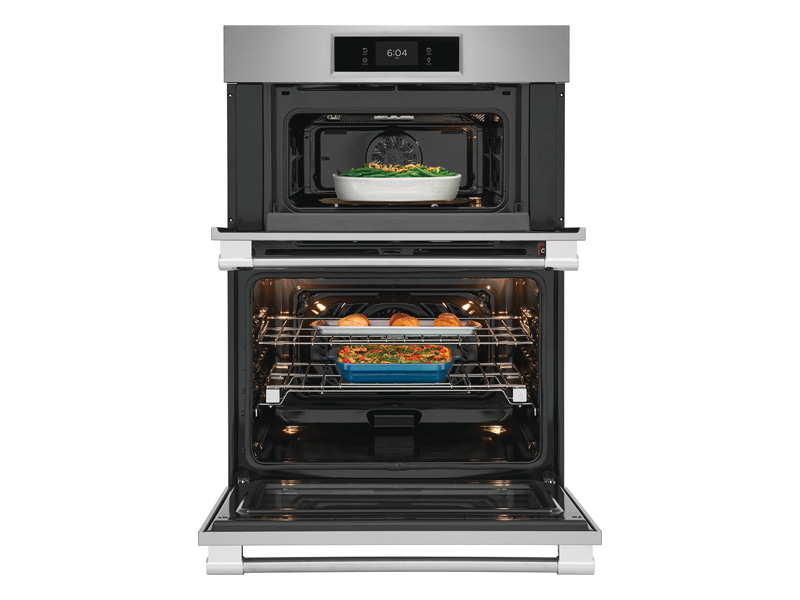

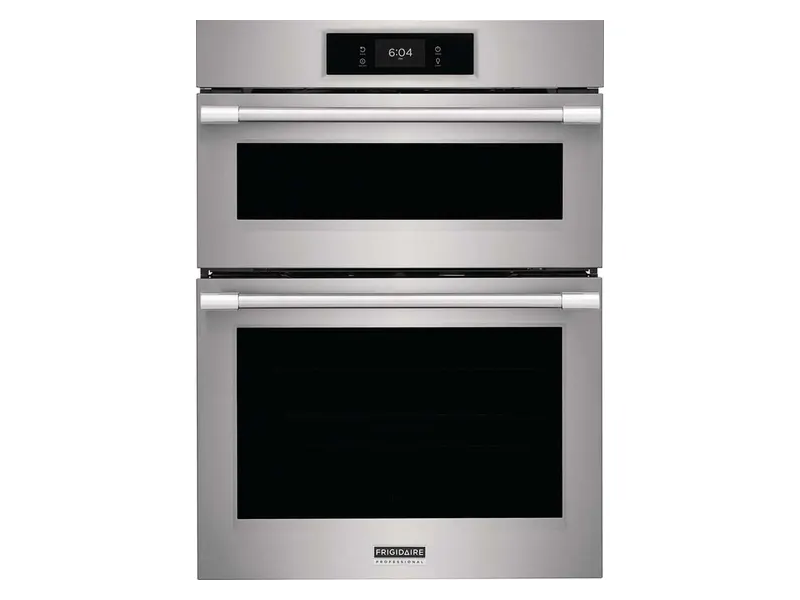

30" Frigidaire Professional Electric Wall Oven and Microwave Combination - PCWM3080AF
30" Frigidaire Professional Electric Wall Oven and Microwave Combination - PCWM3080AF
PCWM3080AF
Features
Our most advanced and powerful convection system, Total Convection
Total Convection gives you maximum versatility in the kitchen, powering cooking modes like Air Fry, No Preheat, Slow Cook, Convection Bake, Steam Bake, Convection Roast, Steam Roast, Air Sous Vide, Bread Proof, Dehydrate and more!
Start baking immediately with No Preheat
Eliminates time wasted waiting on your oven to heat up - simply place your food in the cold oven and get to meal time, in no time. 1
Deliver all of the flavor and none of the guilt with Air Fry.
Air Fry allows you to make healthier and delicious meals for the entire family, right in your oven.

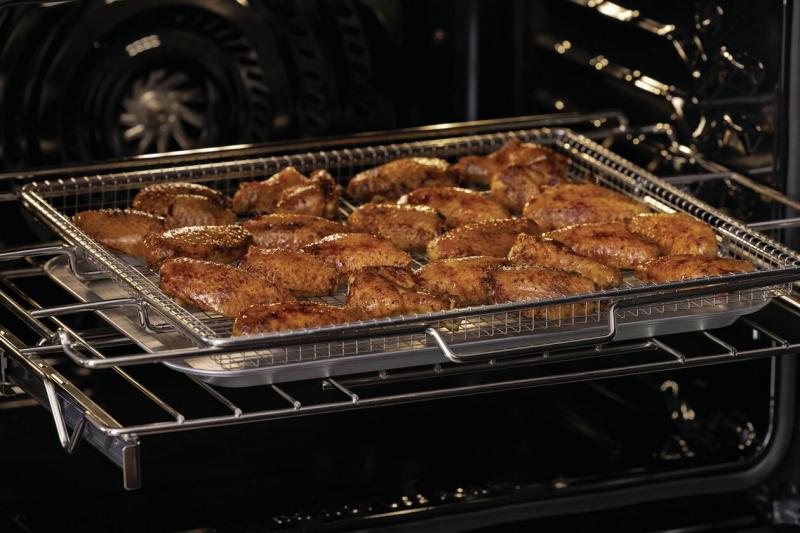

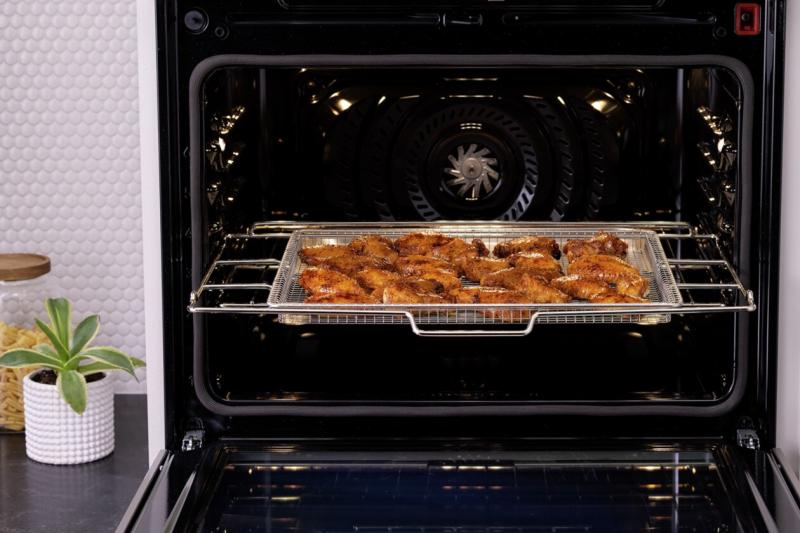

ReadyCook Air Fry Tray is included
For perfectly crispy and delicious Air Fry results. 2
Experience a hassle-free way to cook with Slow Cook
With Slow Cook, your food cooks slowly and at a lower temperature (as low as 100° F), allowing you to lock in moisture and flavor without over or undercooking your food.
Achieve bakery results at home with Steam Bake
With Steam Bake, steam evenly circulates throughout the oven cavity, resulting in breads and muffins that rise higher and are light and fluffy.
Take the guesswork out of cooking with the Temperature Probe
The Temperature Probe monitors and alerts when the desired finished cooking temperature has been reached.
Peace of Mind with our Frigidaire Fit Promise
We promise that your new 30" Frigidaire Professional Microwave Combination Oven will fit your existing cabinet cutout of the same width and configuration, or we will reimburse you up to $300 for cabinet modification costs. 3
Fast convection cooking, right in the microwave
Get the great tasting results of the conventional convection oven, combined with the speed of microwave technology with our convection bake.
Offers two convenient cleaning options
Enjoy more cleaning flexibility. Select Steam Clean for a quick, 30 minute clean or choose Self Clean, which is available in 2, 3 and 4 hour cycles.

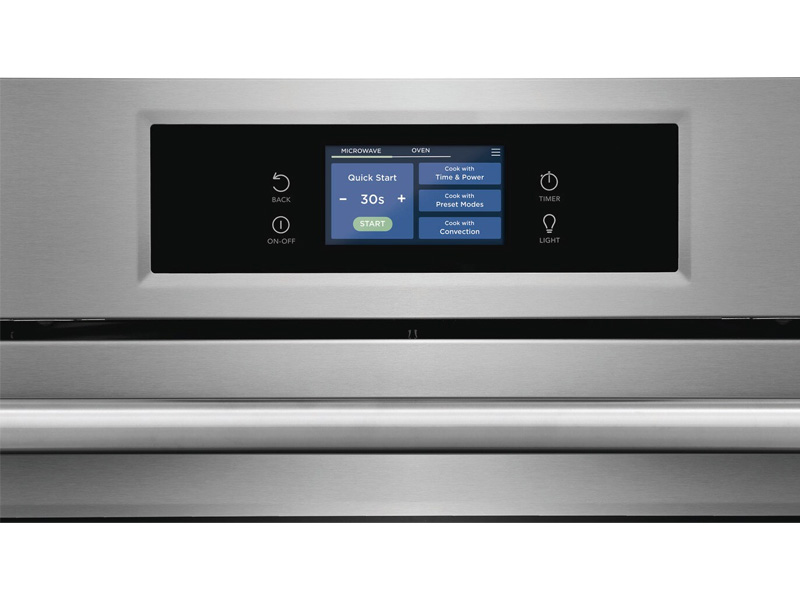

Premium Touch Screen Control Panel
Features a responsive 4.3 inch, full color, capacitive touch digital control panel.
Extra Large Oven Capacity
Cook more at once with our extra large, 5.3 cu.ft. capacity oven.

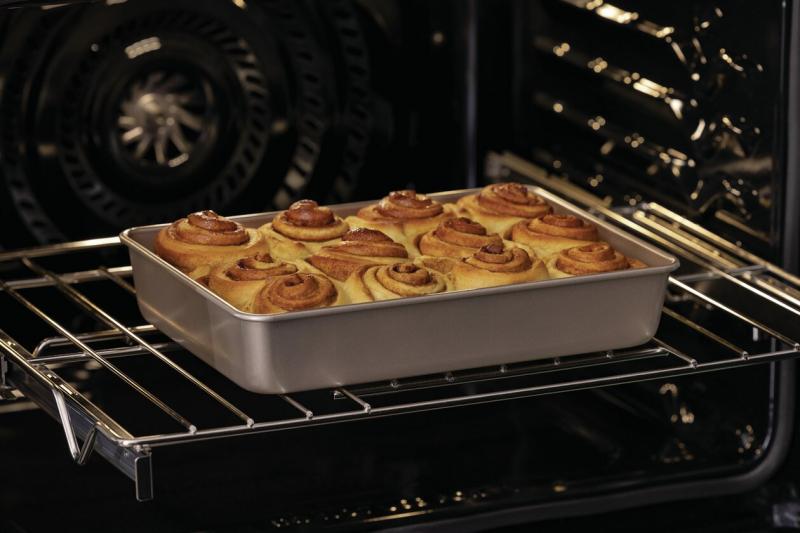

Better access to your meals with our Glide Rack
Our extending Glide Rack makes it easier to monitor and lift your food out of the oven.
Smudge-Proof Stainless Steel
Resists fingerprints and cleans easily.
CONTROLS | |
---|---|
Sabbath Mode | Yes |
Cooking Controls | |
Air Fry | Yes |
Air Sous Vide | Yes |
Clear Off | Yes |
Clock | Yes |
Convection Bake | Yes |
Child Lock | Yes |
Cancel | Yes |
Broil | Yes |
Bread Proof | Yes |
Bake Time | Yes |
Bake | Yes |
Convection Roast | Yes |
Cook Time | Yes |
Dehydrate | Yes |
Delay Clean | Yes |
Delay Start | Yes |
Fast Preheat | Yes |
Keep Warm | Yes |
Light | Yes |
Kitchen Timer | Yes |
Off | Yes |
My Favorite | Yes |
Oven Light | Yes |
Perfect Turkey | Yes |
Preheat | Yes |
Probe | Yes |
Self Clean | Yes |
Set Clock | Yes |
Slow Cook | Yes |
Start | Yes |
Start Time | Yes |
Steam Bake | Yes |
Steam Clean | Yes |
Steam Roast | Yes |
Stop | Yes |
Temperature Display | Yes |
Timed Bake | Yes |
Timer On / Off | Yes |
User Preferences | Yes |
ELECTRICAL SPECIFICATIONS | |
Connected Load @ 240V | 7.6 kW |
Amps @ 240 Volts | 40 Amps |
Minimum Circuit Required | 40 Amps |
Voltage Rating | 240 V |
Cooking Controls Function | |
Change between Continuous Bake Setting or 12-Hour Energy Saving Feature | Yes |
Delayed Bake | Yes |
Program Fahrenheit or Celsius | Yes |
Silent Control Panel | Yes |
Timed Cooking | Yes |
Microwave Cooking | |
Microwave Cooking Power | 1000 Watts |
Bacon | Yes |
Beverage | Yes |
Defrost | Yes |
Melt / Soften | Yes |
Reheat | Yes |
Popcorn | Yes |
Rice | Yes |
Top Grill Mode | Yes |
Veggies | Yes |
OVEN | |
Bake Element | 2,600 Watts |
Bake Element Pass | 4 |
Bake Element Type | Hidden |
Broil Element | 4,000 Watts |
Broil Element Pass | 6 |
Cleaning System | Yes |
Broil System | Yes |
Convection | Yes |
Convection Element | 3,800 Watts |
Convection Type | Total |
Number of Rack Positions | 6 |
Number of Convection Fans | 1 |
Oven Interior Color | Midnight Black |
Oven Light Quantity | 2 |
Oven Light Type | Halogen |
Oven Light Watts | 40 Watts |
Rack Position Type | Embossed |
Rack Type 1 | Handle |
Rack Type 1 Quantity | 2 |
Rack Type 2 | Glide |
Rack Type 2 Quantity | 1 |
Installation | |
Power Supply Connection Location | Top Left |
Exterior | |
Exterior Finish | Smudge-Proof Stainless Steel |
Microwave Control Features | |
+ 30 Seconds | Yes - One Touch |
Certifications and Approvals | |
Star-K Certification | Yes |
CSA Listed | Yes |
UL Listed | Yes |
Convection Cooking | |
Convection Cooking - Bake | Yes |
Certifications and Approvals | |
RoHS | Yes |
Convection Cooking | |
Convection Element | 1650 Watts |
CONTROLS | |
Control Lock | Yes |
General Specifications | |
Warranty - Parts | 1 Year |
Warranty - Labor | 1 Year |
Prop 65 Label | Yes |
Product Weight | 285 lbs |
Display | |
Display Type | Capacitive Touch |
Display Light Color | White |
Display Interface Color | White |
Control Location | Front |
Internal Specifications | |
Turntable Material | Glass |
Turntable Diameter | 14 |
Rack | Yes |
Dimensions and Volume | |
Oven Capacity | 5.3 Cu. Ft. |
Microwave Capacity | 1.7 Cu. Ft. |
Maximum Cutout Width | 29 |
Maximum Cutout Height | 41 1/2 |
Minimum Cutout Width | 28 1/2 |
Microwave Interior Depth | 16 1/8 |
Minimum Cutout Height | 40 5/8 |
Microwave Interior Width | 18 7/8 |
Microwave Interior Height | 9 5/16 |
Oven Interior Depth | 19 7/8 |
Oven Interior Width | 25 3/16 |
Oven Interior Height | 18 1/8 |
Cutout Depth | 23 5/8 |
Depth With Handle | 27 3/5 |
Depth With Door 90° Open | 48 3/16 |
Width | 29 7/8 |
Depth | 25 3/16 |
Height | 41 9/16 |
