Integrates the ventilation system into the cooking surface so that a separate hood is not needed. Smoke and odors can be removed and taken outside or filtered and recirculated inside. A duct-free kit is available for purchase separately.
10'' Even-Heat Ultra Element with Simmer Setting
Provides more versatility for high and low temperature cooking techniques. Even-Heat Technology maintains a constant supply of power and delivers a range of simmer settings.

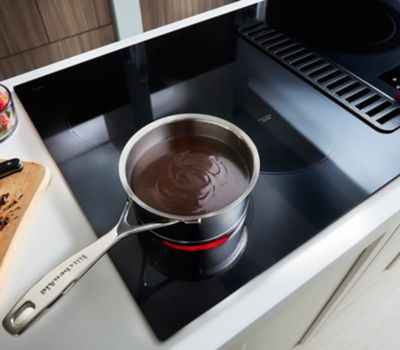

6'' Even-Heat Element with Melt Setting
Combines the benefits of Even-Heat Technology with a dedicated setting that reaches the low temperatures needed to melt chocolate or butter without scorching.
300 CFM Exhaust Rating
Handles the venting requirements of high temperature cooking techniques like pan searing and stir-frying.

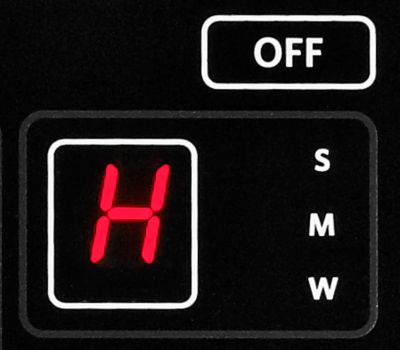

3-Speed Fan Control
Can be precisely matched to cooking needs, effectively removing steam, grease, and odors from the air.
CookShield Finish for Glass Surface
Protects the cooktop surface from scratches, helping keep it looking pristine even with frequent use.
9''/6'' Ultra Power Double-Ring Round Element
Two element sizes in one provide the ability to use it for large stock pots or six-inch sauté pans and handle tasks ranging from rapid boiling and searing to wok cooking.

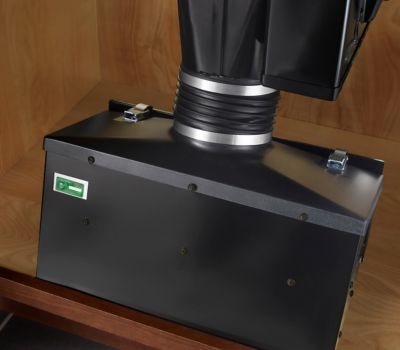

Convertible to Duct-Free Ventilation
Allows a downdraft cooktop to be placed nearly anywhere in the kitchen using a duct-free conversion kit (not included). This filters and recirculates the air without running ductwork, ideal for kitchens with installation restrictions or ducting limitations.
Power-On Indicator Light
Lets you know at a glance when an element is on.
Provides a clear indication that lets you know if any cooking surface is on or still hot.
Pure Color Ceramic-Glass Surface
Comes in saturated colors with stainless steel control knobs for a sophisticated, easy-to-clean appearance.

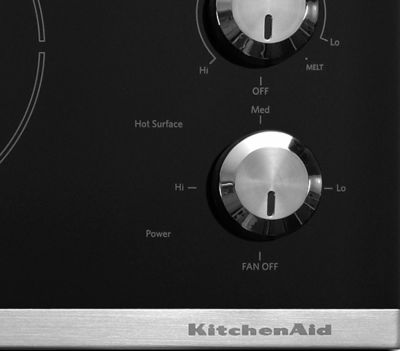

Stainless Steel Knobs
Enhance the look of the cooktop surface with sturdy construction that adds to their premium feel.
6'' Round Element
Can reach a power output of up to 1200 watts to handle your daily cooking needs.
|Configuration and Overview|
|Surface Material||Ceramic Glass|
|Number of Elements-Burners||4|
|Cooktop Element Style||Radiant|
|Number of Open Bays||NA|
|Installs Over Built-In Oven||No|
|Left Front Power||3200W|
|Left Front Size||10"|
|Left Front Type||Hyper|
|Left Rear Power||1300W|
|Left Rear Size||6"|
|Left Rear Type||Hyper|
|Right Front Power||1200W|
|Right Front Size||6"|
|Right Front Type||Single|
|Right Rear Power||3000W/1400W|
|Right Rear Size||9"/6"|
|Right Rear Element-Burner Type||Dual|
|Grate Details||Dishwasher Safe|
|Heating Element On Indicator Light||Yes|
|Hot Surface Indicator Light||Yes|
|Cutout Depth||21 1/8|
|Cutout Width||28 3/4|
