28" Elica Asti Design Range Hood Insert - EAS428S1
Literature
NEW ASTI
ELICA DESIGN CENTER

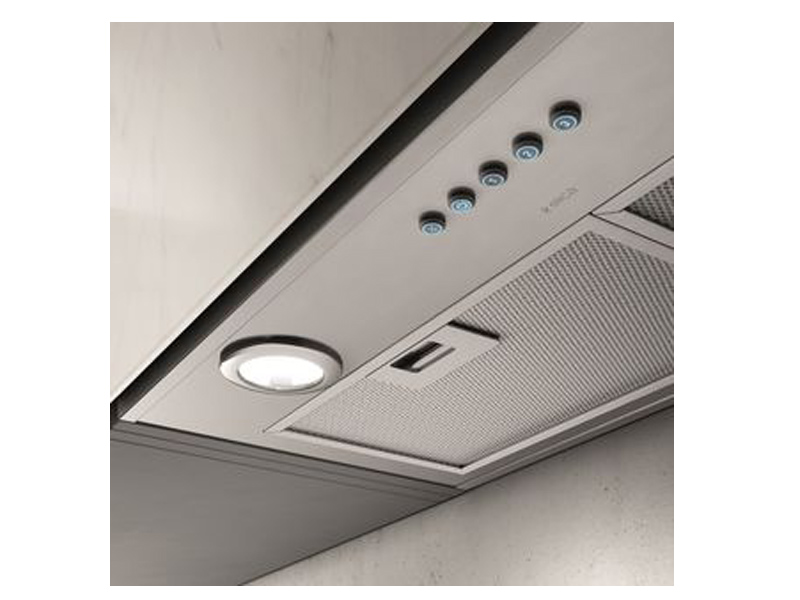

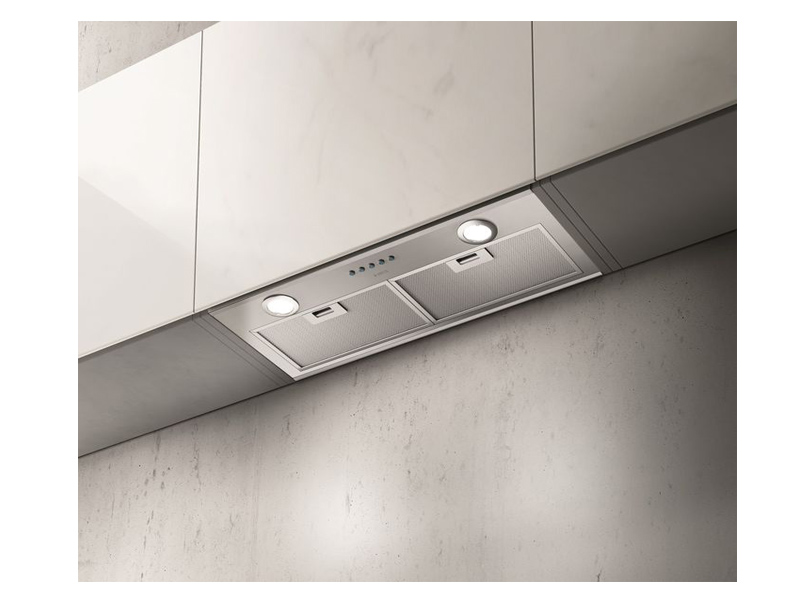

Asti is designed for discreet mounting inside cabinetry. At 28 (1/4") wide and only 10 (3/4") deep, Asti fits perfectly into 12" deep cabinetry and is ideal for kitchens where space is limited, or where the range hood needs to be out of sight.Asti comes equipped with a powerful 400 CFM blower that can handle most of cooking needs; convenient stainless push button controls operate the 3 speed blower and LED lighting, while dishwasher-safe anodized aluminum mesh filters offer easy maintenance. Asti is designed for standard ducted or recirculating installation (with kit sold separately)
Specifications | |
---|---|
Size (in) & Type | 28” Wide Insert Finish Stainless Steel |
Controls | Backlit Electronic Push Button Controls |
Illumination | 2, 40 W LED, 1 Light Intensity (included) |
Installation Type | Ducted or Recirculating Installation |
Blower Type | Recirculating Kit Sold Separately |
Blower Performance | 400 CFM, 3-Speed Internal Speed 1, 160 CFM, 1.5 Sones Speed 2, 280 CFM, 3.1 Sones Speed 3, 400 CFM, 5.9 Sones |
Filter Type | 2, Dishwasher-Safe, Anodized Aluminum Mesh Grease Filters |
Duct Transition | 6” Round with Back Draft Damper (top) |
Electrical | 120V-60Hz 340 Watts at 2.8 Amps |
Warranty | 2 Year Parts & Labor, In-Home Service |
