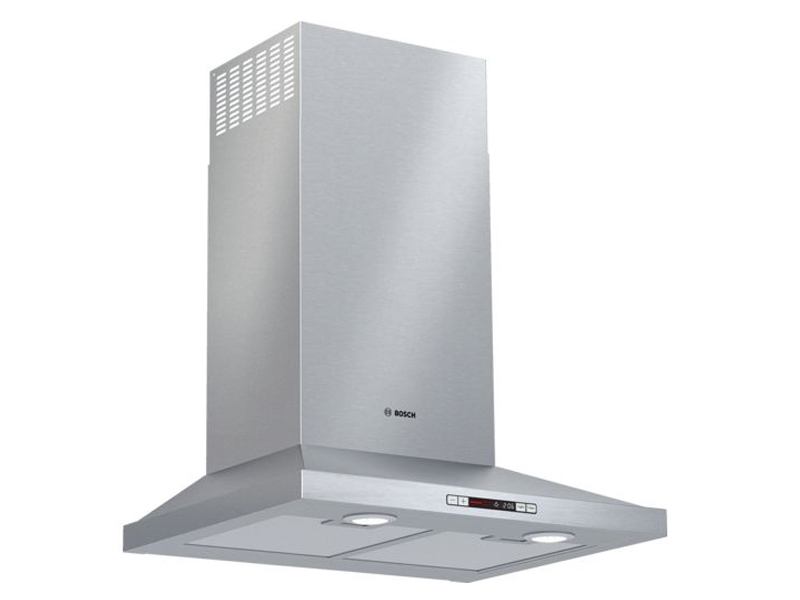

24" Bosch Wall Mount Pyramid Style Canopy Hood With 300 CFM - HCP34E52UC
Literature
Enjoy style, quiet efficiency, & function with the first 24" ENERGY STAR chimney wall hood, ideal for small spaces.
- ENERGY STAR Certified, Efficient 310 CFM Chimney Wall Hood
- 3-Speed Power Level Options To Suit Your Cooking Style And Recipes

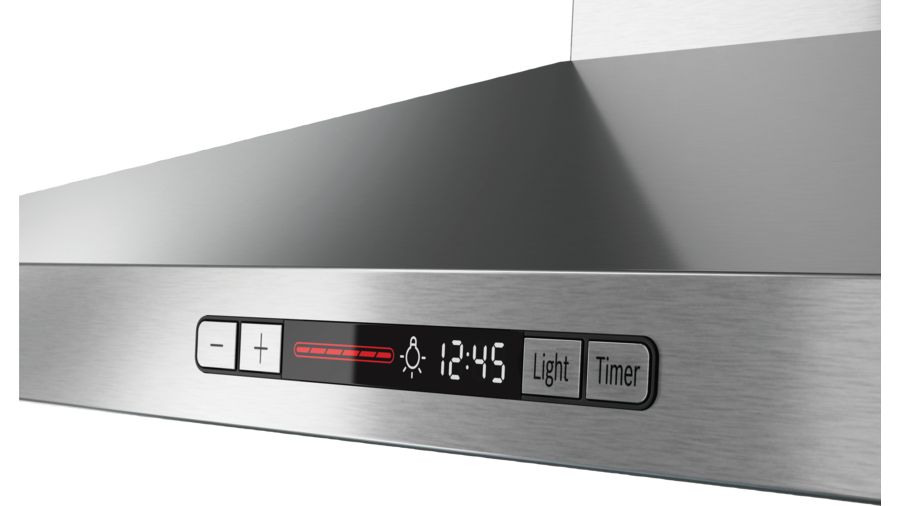

- LCD Touch Display Provide Controls That Are Easy To Use And Read
- Dishwasher-safe Mesh Filters
- Non-Ducted Recirculation Possible With Separate Accessory Kit
Design
- 24" Wide and Ideal To Fit In Small Kitchen Spaces
- Bright LED lighting shines throughout the cooking surface
- Pyramid Chimney Design Creates An Inspiring Focal Point In The Kitchen
- Lighting Can Be Used Independently Of Ventilation For Various Tasks

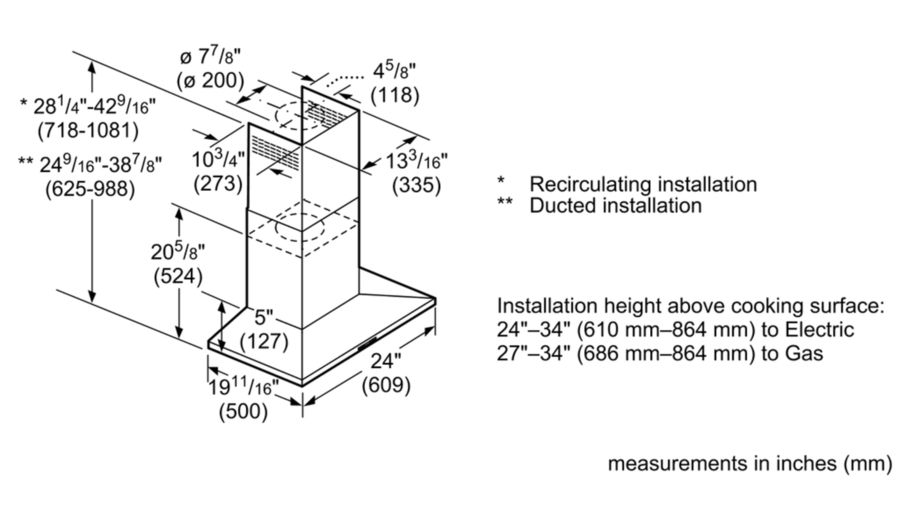

- Telescoping Chimney Design Fits Standard Ceilings 8'-9' Tall
- Telescoping Chimney Design Fits Standard Ceilings 8'-9' Tall
Performance
- Low Noise Ranging 1.5 Sones / 168 CFM Low to 5.3 Sones / 300 CFM High
- A 310 CFM Integrated Blower Motor Is Included With Purchase
- 3-Speeds Give Power Level Options To Suit Your Cooking Style

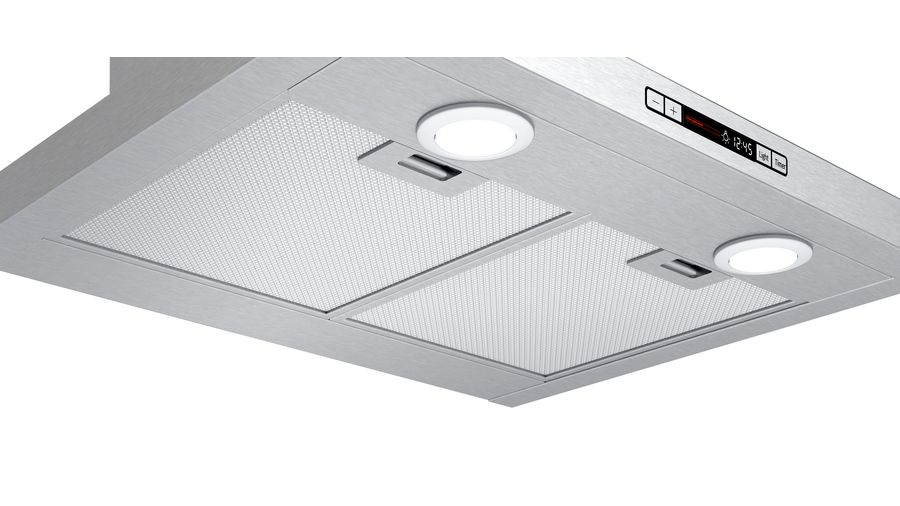

- Aluminum Mesh Filters Capture Grease Created While Cooking
- 8 inch Round Duct at Discharge
Efficiency
- ENERGY STAR Certified Hood To Ensure Efficiency And Performance
- Hood Automatically Turns On At High Speed If Excessive Heat Is Sensed
- Optional Recirculation Kit Comes With Charcoal Filters To Extract Odor
Convenience
- 1-60 Minutes Timer On LCD Display Plays Audible Tone When Time Elapses
- LCD Display Will Illuminate A Reminder To Check Filter Maintenance
- Audible Tone Is Heard When Pressing A Selected Button On LCD Display
- Audible Tone When Pressing LCD Display Can Be Turned Off If Desired
General | |
---|---|
Depth of the product | 500 mm |
Construction type | Built-in |
Operating Mode | Convertable: Ducted / Recirculating |
Maximum output recirculating air | 241 m /h |
Type of control | LCD, Push buttons |
Connectivity | |
Home Connect | No |
Construction type | |
Diameter of air duct (mm) | 200 mm |
Color body | Stainless steel |
Color chimney | Stainless steel |
Grease filter material | Washable aluminium |
Grease filter type | Multilayer cassette |
Installation Type | Wall-mounted |
Material | Stainless steel |
Material chimney | Stainless steel |
Motor location | Integrated motor in hood chimney |
Number of motors | 1 |
Operating Mode | Convertable: Ducted / Recirculating |
Typology | Chimney |
Connection | |
Watts (W) | 170 W |
Power cord length (cm) | 0 cm |
Frequency (Hz) | 60 Hz |
Total power of the lamps (W) | 13; 13 W |
Total output power of the motors | 155 W |
Volts (V) | 110 V |
